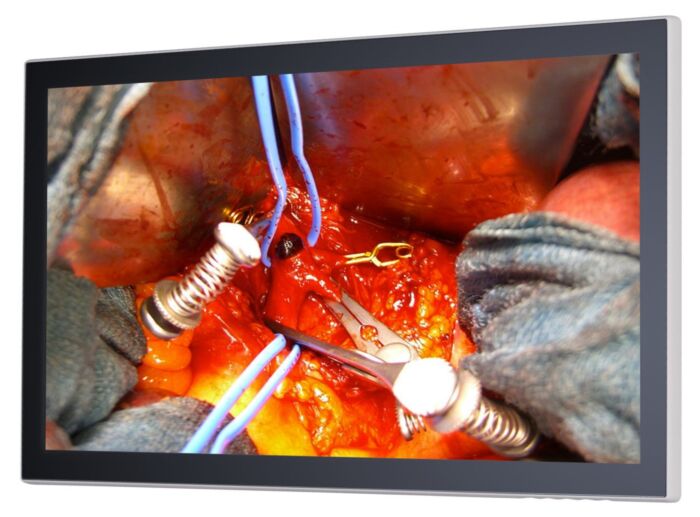

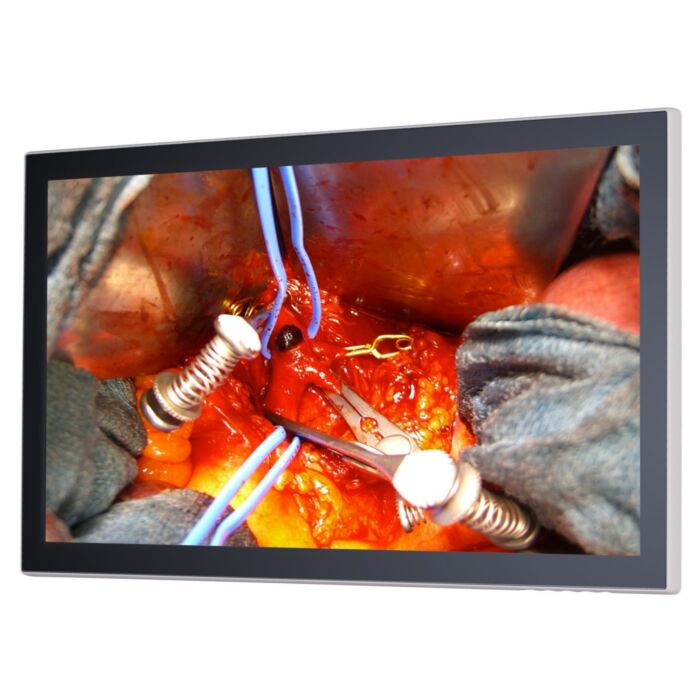

Tru-Vu MMZB-27G-X 27" Medical Grade Monitor | Full HD Surgical Display
The Tru-Vu MMZB-27G-X is engineered for medical imaging, surgical visualization, and industrial-grade display applications where reliability, hygiene, and compliance are critical.
Built with a 27” AMVA panel and LED backlighting, this monitor delivers 1920 × 1080 resolution at 60Hz, ensuring sharp, accurate image reproduction for real-time decision-making. Its 178° wide viewing angles allow clear visibility from multiple positions—ideal for operating rooms, mobile carts, and collaborative environments.
The zero-bezel, fully flat glass front simplifies cleaning and minimizes contamination risk, making it suitable for sterile environments. Combined with a fanless design, the MMZB-27G-X eliminates airborne contaminants and reduces mechanical failure points—critical for continuous operation in medical and industrial systems.
With DVI, HDMI, and DisplayPort inputs, this monitor integrates easily into modern imaging pipelines, embedded systems, and video workflows used in robotics, UAV payload displays, and inspection systems.
Key Features:
- 27” Full HD (1920 × 1080) medical-grade display
- Certified to UL 60601-1 (Ed. 3.1) and IEC 60601-1-2 (4th Edition)
- Zero-bezel, IP65-rated front for easy cleaning and hygiene
- Fanless design for silent, contamination-free operation
- Wide 178° viewing angles for multi-position visibility
- 350 nits brightness / 3000:1 contrast ratio
- Multi-input support: HDMI, DisplayPort, DVI
- Built-in dual rear speakers
- Auto restart after power loss
- VESA mount compatible (100×100)
- TAA compliant with 3-year warranty
Applications:
- Surgical displays & operating rooms
- Medical imaging systems (PACS, fluoroscopy, endoscopy)
- Mobile medical carts & diagnostic stations
- OEM medical device integration
- Robotics & UAV ground control displays
- Industrial inspection & quality control systems
- Cleanroom and sterile environment monitoring
The MMZB-27G-X stands out due to its medical-grade compliance and fanless architecture, which directly impact reliability in continuous-use systems. Unlike consumer displays, this unit is designed for:
- 24/7 uptime environments
- Electromagnetic compatibility (EMC) in sensitive systems
- Consistent image reproduction without flicker or signal drop
For engineers integrating display systems into robotics, UAVs, or inspection platforms, these factors translate into predictable performance and reduced system risk.
FAQ
Q: Is the MMZB-27G-X suitable for non-medical industrial use?
Yes. Its fanless design, durability, and stable image output make it ideal for industrial automation, robotics, and inspection systems.
Q: Does this monitor support low-latency video input?
Yes. Direct inputs via HDMI, DisplayPort, and DVI ensure minimal latency for real-time applications.
Q: What makes this a medical-grade monitor?
It meets UL 60601 and IEC 60601 standards, ensuring electrical safety, EMC compliance, and suitability for patient-care environments.
Q: Can this be mounted on robotic or mobile systems?
Yes. It supports 100×100 VESA mounting, making it easy to integrate into mobile carts, UAV control stations, or robotic systems.
| Display Panel | 27” Color AMVA; LED Backlight |
|---|---|
| Resolution | 1920 x 1080 (1080p @ 60Hz) |
| Viewable Area | 23.53” (W) x 13.23” (H) |
| Pixel Pitch | 0.311 mm |
| Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 12 ms |
| Inputs | HDMI, DisplayPort, DVI |
| Audio | Dual Rear Speakers |
| Power | 100–240 VAC Medical-Grade External Supply |
| Power Consumption | 27.5W |
| Enclosure | Zero-Bezel Front, White ABS Rear |
| IP Rating | Front: IP65 / Rear: IP30 |
| Mounting | VESA 100 x 100 |
| Operating Temp | 32°F to 122°F (0°C to 50°C) |
| Humidity | 5–90% Non-Condensing |
| Certifications | UL 60601-1, IEC 60601-1-2, CB |
| Dimensions | 25.51” x 15.23” x 2.48” |
| Weight | 14.7 lbs |
| Warranty | 3 Years |
