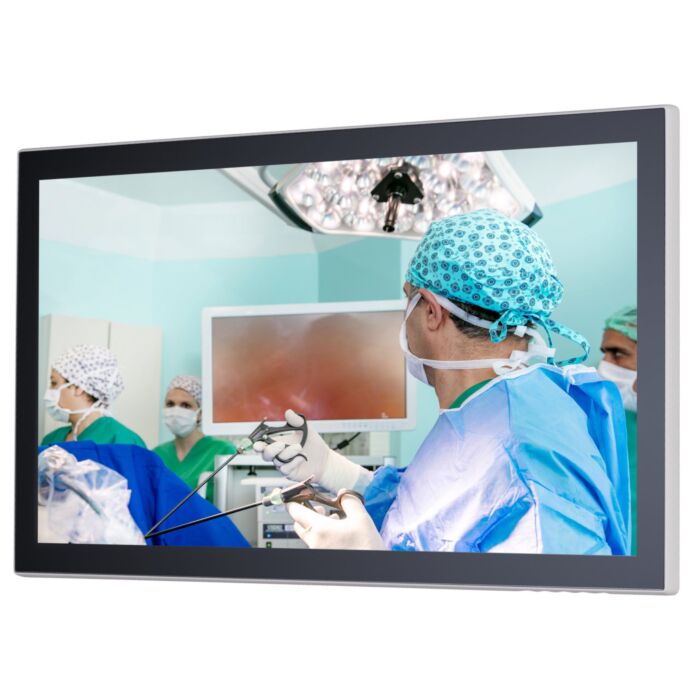

Tru-VU MMZB-21.5G-X 21.5” Medical Grade Monitor
SKU
MMZB-21.5G-X
$1,215.00
Quick Overview
*Please note this product is subject to tariff fee*
The TRU-Vu MMZB-21.5G-X is a 21.5” medical grade monitor. It conforms to UL 60601-1 Edition 3.1, and IEC 60601-1-2 4th Edition. Our 21.5″ medical display is ideal for use in hospitals and critical care centers. They are deployed in surgical operating rooms, on medical carts, and in diagnostic imaging equipment. Medical imaging systems, fluoroscopy, endoscopy, OEM medical systems, PACS and other healthcare systems also benefit greatly.Our widescreen 21.5″ medical monitor provides 1080p, 1920 x 1080 Full HD resolution. The super-wide 178 x 178 viewing angles ensure clear, sharp images when viewed from nearly any angle. Thanks to its high resolution, brightness and high contrast ratio, our 21.5″ medical-grade display provides razor-sharp, flicker free images. This enables doctors and surgeons to make accurate, and timely, critical decisions. Fast response time and lag-free transmission of images ensure the most detailed images in the OR today.
Features:
- 21.5” Medical Grade Monitor
- Meets UL 60601-1 Ver. 3.1; IEC 60601-1 4th Edition
- White ABS Enclosure; Bezel-Less Front Simplifies Cleaning, Increases Safety & Hygiene
- 1920 x 1080 Full HD Resolution
- Built-In Speakers
- Fan-Less Design
- Auto Re-Start After Power Loss
Applications:
- OR/ER/ICU
- Patient Monitoring and Information
- Telemedicine
- Endoscopy
| LCD Panel | 21.5” Color AHVA; LED Backlights |
| Display Resolution | 1920 x 1080 (1080p/60) |
| Viewable Area | 18.76” (W) x 10.55”(H) (476.64 x 268.11mm) |
| Pixel Pitch | 0.248 mm |
| Display Colors | 16.7 M |
| Apect Ratio | 16:9 |
| Brightness | 350 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 22 ms Trf |
| Control | OSD (On-Screen Display) via Capacitive Buttons Under Front Edge |
| Video Inputs | DVI, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 100-240 VAC via Medical-Grade External Power Supply and Green Dot Power Cord |
| Power Consumption | 16.8W |
| Enclosure | White ABS; Zero-Bezel Design |
| Enclosure IP Rating | Front: IP65 Rear: IP30 |
| Mounting | 100mm x 100mm Rear VESA Holes; Optional Tabletop Base |
| Operating Temp. | +32 to +122°F (0-50°C) |
| Humidity | 5-90% Non-Condensing |
| Shock/Vibration | 50G Half-sine 20 msec ; 1.5G 10-200 Hz50G, Half-sine Wave, 20ms, X/Y/Z |
| Certifications | UL: ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) Amendment 1; CAN/CSAC22.2 No. 60601-1:14 - Edition 3; CB: IEC 60601-1-6:2010/AMD1:2013, IEC 60601-1-6:2010, IEC 60601-1:2005/ AMD1:2012, IEC 60601-1:2005; FCC Part 18, Subpart C; CE: EN60601-1-2:2015; RoHS; REACH |
| Dimensions | 20.72” (W) x 12.65” (H) x 2.25” (D) (526.2 x 321.2 x 57.1 mm) |
| Weight | 10 lbs (4.53 kg) |
| Warranty | 3-Years |
