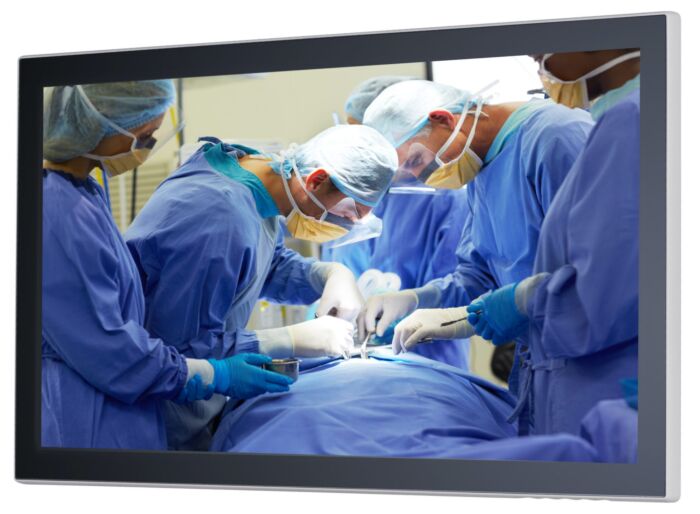

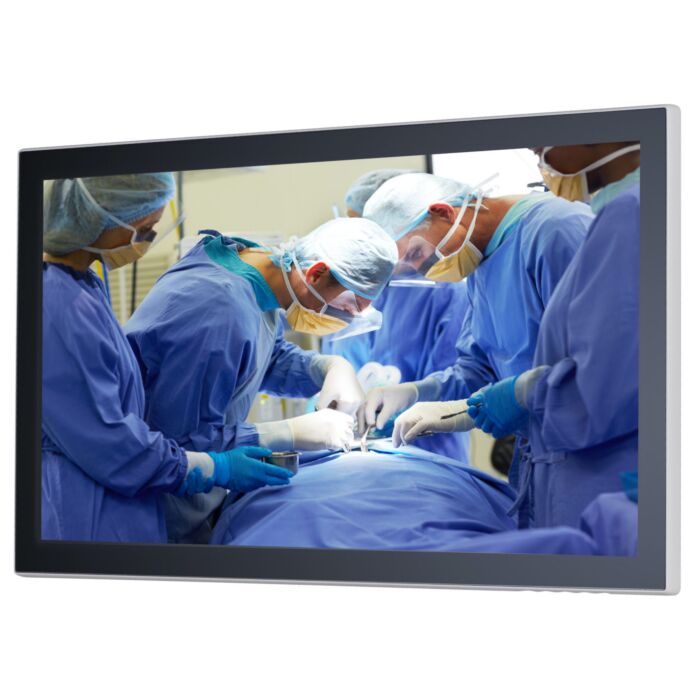

Tru-Vu MMZB-15.6G-X 15.6" Medical Grade Monitor
The TRU-Vu MMZB-15.6G-X is a high-performance 15.6-inch medical grade monitor engineered to meet the demanding standards of hospital operating rooms, clinics, and medical device OEMs. Its Full HD resolution (1920x1080), ultra-wide 178° viewing angles, and bezel-less design ensure optimal image quality and easy sterilization, making it ideal for critical environments. Certified to UL 60601-1 (Ed. 3.1) and IEC 60601-1-2 (4th Ed.), this monitor is designed for reliability, hygiene, and safety in healthcare settings.
With a fanless, anti-glare enclosure and rear dual speakers, the MMZB-15.6G-X delivers clear visuals and dependable performance in sterile areas. User-friendly OSD controls, multiple input options (HDMI, DVI-D, DisplayPort), and a rugged ABS chassis offer versatile integration. Auto-restart after power loss and optional cable management features make the MMZB-15.6G-X a trusted choice for today’s advanced medical imaging applications.
Features:
- 15.6” Full HD (1920 x 1080) resolution
- Ultra-wide 178° viewing angles
- Bezel-less, anti-glare glass front for hygiene
- Fanless design for sterile environments
- Dual rear speakers
- OSD controls under front edge
- DVI-D, HDMI, DisplayPort inputs
- Auto re-start after power loss
- 100mm x 100mm VESA mounting
- TAA compliant, 3-year warranty
Applications:
- Operating Rooms
- Medical Carts
- Imaging Systems
- Patient Monitoring
- Endoscopy Suites
- OEM Integrations
| LCD Panel | 15.6" Color AHVA; LED Backlights |
| Resolution | 1920 x 1080 (1080p/60) |
| Viewable Area | 13.55" W x 7.62" H (344.16 x 193.59 mm) |
| Pixel Pitch | 0.17925 mm |
| Display Colors | 16.7M |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Protective Glass | Anti-Glare |
| Response Time | 25 msec Trf |
| Control | OSD via Pushbuttons Under Front Edge |
| Video Inputs | DVI-D, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 100-240 VAC via Medical-Grade External Power Supply (Green Dot cord, locking connector) |
| Power Consumption | 13.8W |
| Enclosure | Zero-Bezel Front; White ABS Rear |
| IP Rating | Front: IP65, Rear: IP30 |
| Mounting | 100mm x 100mm Rear VESA Holes, Optional Tabletop Base |
| Operating Temp. | -4˚ to 158˚F (-20 to +70˚C) |
| Humidity | 5-90% RH |
| Shock / Vibration | 50G 20ms; 1.5G 10-200Hz |
| Certifications | UL: ANSI/AAMI ES60601-1; CAN/CSAC22.2 No. 60601-1:14 CB: IEC 60601-1-6:2010/AMD1:2013 etc. |
| Dimensions | 15.47" (W) x 9.54" (H) x 1.86" (D) (393 x 242.4 x 47.44 mm) |
| Weight | 5.6 lbs (2.54 kg) |
| Warranty | 3 Years |
