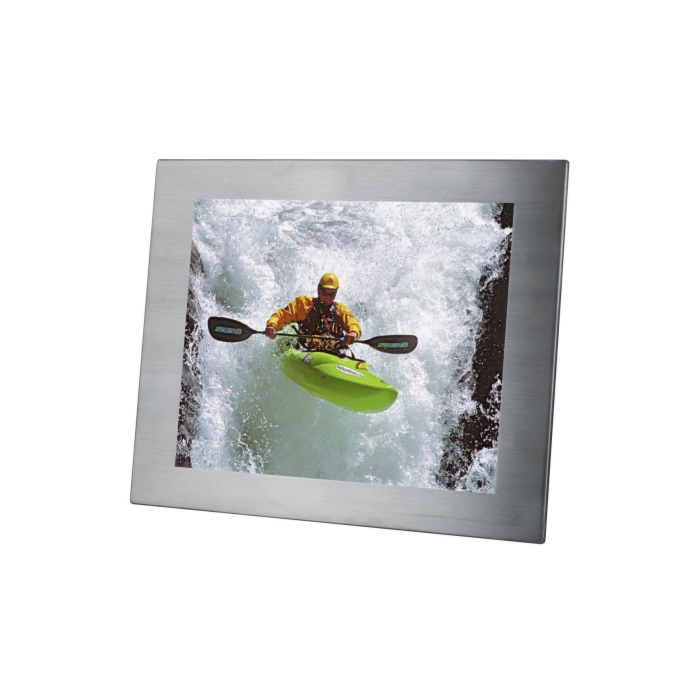

Tru-Vu SRMHTRWP-10.4V (SRMHTRWP10.4V) 10.4" Sunlight Readable Touch Screen Monitor
*Product is discontinued, Replacement Option: SRMHXTRWP-10.4C
1,500 nits; Resistive Touch Screen; Painted Steel Panel-Mount Enclosure; NEMA 4 Waterproof Face; VGA Input; 12VDC/ 90-240VAC
SKU
SRMHTRWP-10.4V-TruVu
The Tru-Vu SRMHTWP-10.4 Series Sunlight Readable Waterproof Panel-Mount Touch Screens are designed to operate in direct bright sunlight, or in other high ambient-light conditions. They utilize state-of-the-art LED backlights to produce over 1,500 nits of brightness (vs. 250-300 nits for standard monitors).
Features:
Applications:
| Model | SRMHTRWP-10.4V |
| LCD Panel | 10.4” Color MVA LCD Panel |
| Touch Technology | 5-Wire Resistive Touch |
| Touch Interface | USB |
| Resolution | 800 x 600 |
| Viewable Area | 8.3” (W) x 6.24” (H) |
| Pixel Pitch | 0.2055mm |
| Display Colors | 16.2 M |
| Aspect Ratio | 4:3 |
| Brightness | 1,500 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) x 178° (W) |
| Response Time | 15 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA |
| Power Requirement | 12-24 VDC |
| Power Consumption | 13 Watts |
| Operating Temperature | -30˚ to 80˚F |
| Humidity | 8-90%RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z) |
| Dimensions | 12.57” (W) x 9.87” (H) |
| Warranty | 3 Years |
