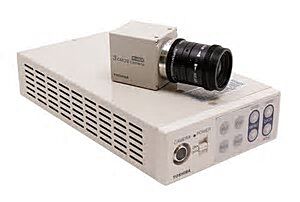

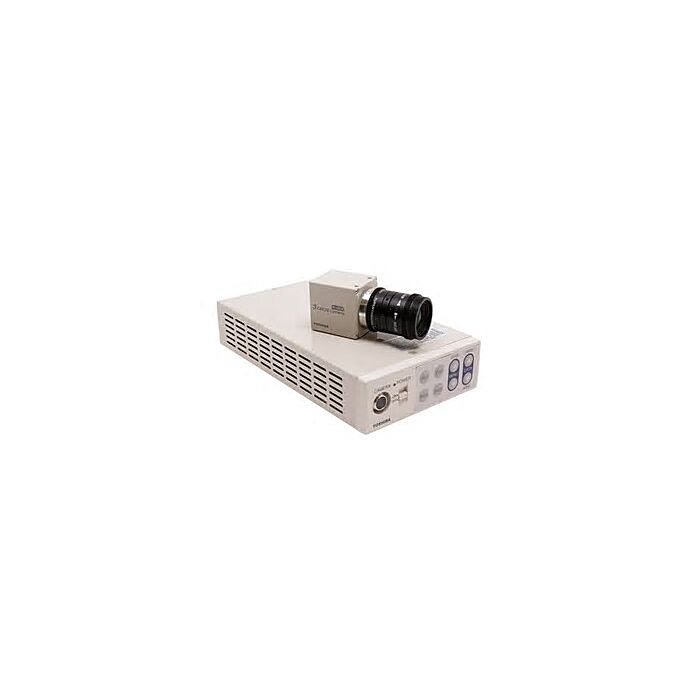

Canon Medical Systems IK-HD5UM DVI-D (IKHD5UMDVID) / USB3.0 Micro-B Camera

Canon Medical Systems introduces the latest 3-CMOS, full-HD, progressive scan camera innovation which meets IEC60601 3rd edition requirements for use in various medical and surgical imaging applications.
SKU
IK-HD5UM-Canon Medical

The new Canon Medical Systems IK-HD5UM configuration features DVI-D and USB3.0 outputs and is adapted for use in various non-patient contact, non-diagnostic imaging applications including surgical microscopy, surgical light camera integration or surgical room monitoring and surveillance. Three-chip performance provides exceptional sensitivity, accurate color reproduction and sharp details through Canon Medical Systems’s proprietary prism block technology. Use the camera to provide real-time, incredibly detailed reference images for education, documentation and in-room surgical staff. The IK-HD5UM offers improved sensitivity in near IR spectrums supporting applications which use fluorescing agents such as ICG.

Features:

  • 60601-1 certified HD video camera
  • DVI-D and USB3.0 output, 1920 x 1080
  • Switchable between 1080p and 1080i
  • Up to 1,000 TV lines resolution
  • 5 User-configurable scene files
  • Binning mode for 4x increase in sensitivity
  • Image flip and mirror
  • Gen-lock for 3D and multi-camera use
  • Remote control via RS232
  • C-mount lens mount
  • 1920 x 1080 at 59.94fps via USB3.0 or 10fps in USB2.0
  • Front panel freeze frame
  • Long exposure mode up to 60 frames, (1 second)
  • Image Sensor

    3-CMOS, 1/2.9 inch, 2.1MP progressive

    Output Resolution

    Horizontal : 1920, Vertical : 1080

    Resolution
    H: 1000 TV lines standard
    V: 1000 TV lines standard
    Sensitivity

    F10 standard (59.94 Hz setting)
    F11 standard (50 Hz setting) (at 2000 lx, 3000 K)

    Minimum Illumination

    4.8 lx (59.94 Hz setting)
    4.0 lx (50 Hz setting)) at F2.2 , 20 dB, BINNING: ON
    9.6 lx (59.94 Hz setting)
    8.0 lx (50 Hz setting) at F2.2, 20 dB, BINNING: OFF

    S/N Ratio

    56 dB standard
    AGC: OFF, Gamma: OFF, Enhance: OFF

    Operating Temperature

    0˚C to 40˚C / 32˚F to 104˚F

    Operating Humidity

    Less than 90% (non-condensing)

    Weight

    Approx. 93g (3.3 oz)

    Dimensions

    W: 32.6 mm H: 38.6 mm D: 41 mm (1.28” x 1.52” x 1.61”) Protruding portion is not included

    Power Supply

    12V DC±10%

    Power Consumption

    11.6 W


    Scanning System

    Progressive / Interlaced (Selectable)

    Scan Frequency

    H: 67.433 kHz, V:59.94 Hz :1080p / 59.94 Hz
    H: 56.250 kHz, V:50 Hz :1080p / 50 Hz
    H: 33.716 kHz, V:59.94 Hz : 1080i / 59.94 Hz
    H: 28.125 kHz, V:50 Hz : 1080i / 50 Hz

    Operating Temperature

    0˚C to 40˚C / 32˚F to 104˚F

    Operating Humidity

    Less than 90% (non-condensing)

    Weight

    Approx. 850 g (1.9 lbs.)

    Dimensions

    W: 110 mm, H: 40 mm, D: 186 mm (4.33” x 1.58” x 7.32”)

    Scene Files

    5 User-configurable scene files

    White Balance

    Auto / Manual (Selectable)

    Gain

    Auto (-15dB to 20dB); Manual (-15dB to 20 dB), OFF

    Output Signal

    DVI-D / USB Micro-B
    1920 x 1080/59.94fps max. USB3.0
    1920 x 1080 10fps max. USB2.0

    Electronic Shutter

    Auto / Manual (OFF 1/60 - 1/10,000) / Syncro Scan
