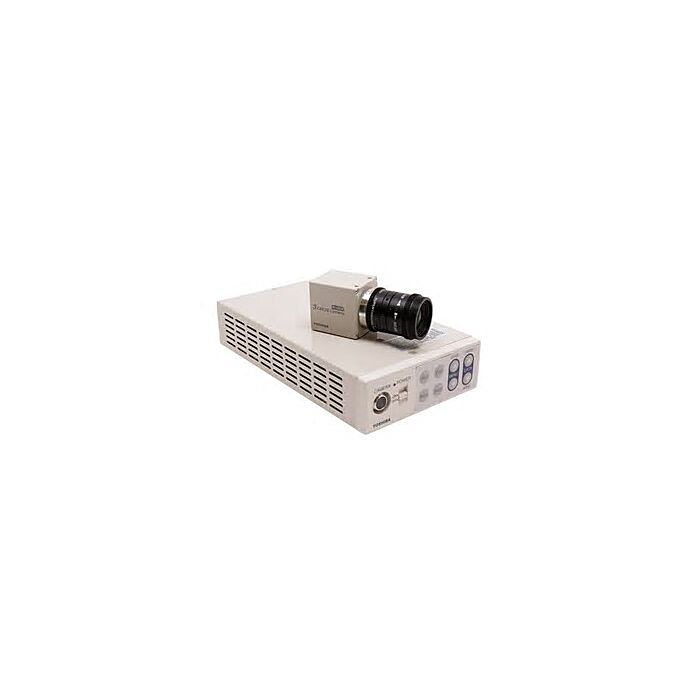

Toshiba IK-4KE Camera Control Unit for IK-4KH camera head Image

Canon Medical Systems IK-4KE (IK4KE) UHD 4K Camera Control Unit for IK-4KH camera head

KT&C ATC-UZ5707U Front Angled View

KT&C ATC-UZ5707U 4K Global Shutter Auto Focus 7X Optical Zoom Block Camera

Canon Medical Systems IK-4KH (IK4KH) UHD 4K Camera with Camera Control Unit

3840 x 2160, 3-CMOS, 1/2.9", 8MP, F5.6-F6.1, 50/59.94 HZ, 4x 3GSDI camera control output for IK-4KH Ultra High Definition Remote Camera Head.


SKU
IK-4KH-Canon Medical

Canon Medical Systems leading innovation continues with its introduction of the world's smallest 3-chip UltraHD, 4K video camera system, the IK-4K.  The key advantage of this incredible camera is improved resolution, providing amazingly sharp details which can enhance many video applications from scientific imaging, life sciences, and defense to professional broadcast. When 4K images are desired and space is limited, the IK-4K delivers exceptional color performance with remarkable details, providing absolutely the best images possible.

Canon Medical Systems IK-4KH - Camera
Canon Medical Systems IK-4KE - Camera Control Unit


Features:

  • 3840 x 2160 50/59.94 Hz UltraHD 4K output
  • Switchable formats; 4K, 1080p and 1080i
  • Amazing details up to 1600 TV lines resolution
  • Ultra-compact two piece design
  • 4x 3G/HD-SDI output for maximum signal fidelity
  • 12-channel color adjustment to achieve exceptional color accuracy and control
  • 5 User-configurable settings files to support different operating modes and conditions
  • Image flip and mirror
  • Freeze frame
  • Gen-lock for 3D and multi-camera use
  • Remote control via RS232
  • C-mount lens mount

  • Applications:

  • Scientific/Industrial Imaging
  • Life Sciences
  • Military Defense Projects
  • Broadcasting
  • IK-4KH CAMERA HEAD SPECIFICATIONS
    Image Sensor
    3-CMOS, 1/2.9", progressive
    Output Matrix
    Horizontal: 3840, Vertical : 2160 UHD 4K mode
    Horizontal: 1920, Vertical: 1080 HD 1080p/1080i
    Output Resolution H/V
    1600 TV lines standard UltraHD 4K mode
    1000 TV lines or more 1080p/1080i modes
    Sensitivity F5.6 standard (59.94 Hz setting)
    F6.1 standard (50 Hz setting) at 2000 lx, 3000K
    Minimum Illumination
    19.5 lx (59.94 Hz setting)
    16.2 lx (50 Hz setting) at F2.2, 24 dB
    S/N Ratio
    58 dB standard
    AGC: OFF, Gamma: OFF, Enhance: OFF
    Color matrix: OFF, Color temp: 5600K
    Operation Temperature
    0°C to 40°C / 32°F to 104°F
    Operation Humidity
    Less than 90% (non-condensing)
    Weight
    Approx. 70 g (2.5 oz)
    Dimensions
    W: 32.6 mm H: 38.6 mm D: 41 mm
    (1.28" x 1.52" x 1.61") Protruding portion is not included
    IK-4KE CONTROLLER SPECIFICATIONS
    Power Supply
    12V DC±10%
    Power Consumption
    13.8W
    Scanning System
    Progressive / Interlaced (Selectable)
    Scan Frequency
    H: 67.433 kHz, V: 59.94 Hz :1080p / 59.94 Hz 4K / 59.94 Hz 4 division output
    H: 56.250 kHz, V: 50 Hz :1080p / 50 Hz 4K / 59.94 Hz 4 division output
    H: 33.716 kHz, V: 59.94 Hz : 1080i / 59.94 Hz
    H: 28.125 kHz, V: 50 Hz : 1080i / 50 Hz
    Operating Temperature
    0°C to 40°C / 32°F to 104°F
    Operating Humidity
    Less than 90% (non-condensing)
    Weight
    Approx. 800g (1.76 lb)
    Dimensions
    W: 110 mm, H: 40 mm, D: 196 mm (4.33" x 1.58" x 7.72")
    Scene Files
    5 User-configurable scene files
    White Balance
    Auto/Manual (Selectable)
    Gain
    Auto (-6 dB to 24 dB); Manual (-6 dB to 24 dB), OFF
    Output Signal
    4x 3G/HD-SDI
    Electronic Shutter Auto/Manual/OFF 1/60 - 1/10,000
