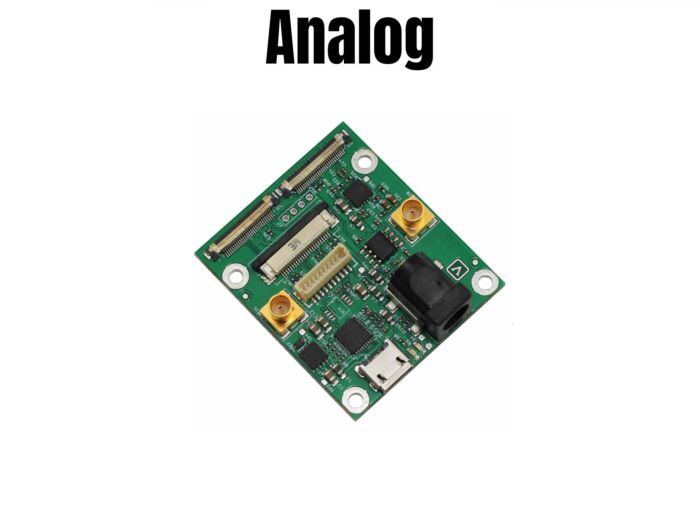

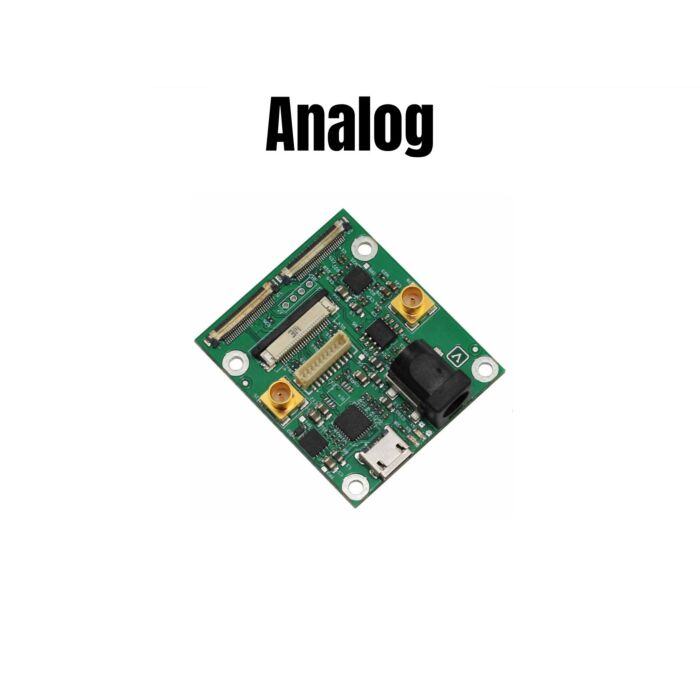

TL9801 Analog CVBS Video Transceiver with USB2 UART Control and Camera Block Support for Sony & Tamron Models
The TL9801 Analog CVBS Video Transceiver is a highly versatile and reliable device designed to support a wide range of camera blocks, including the Sony FCB-EV7520A, Tamron MP1110M-VC, MP2030M-GS, and AZM-FS10L, AZM-FS20L, and AZM-FS30L models. It delivers high-quality CVBS analog video output, ensuring stable and clear video transmission for various applications such as surveillance, broadcasting, and industrial video systems. The TL9801 also offers seamless integration with USB2 UART and 3.3V TTL interfaces for controlling the connected camera, providing flexibility and ease of use for remote operation. The power input range of 9V to 12V DC is ideal for maintaining consistent performance in a variety of settings, with the device consuming a low 3.2W when paired with the Tamron MP1110M-VC camera (with motors inactive), ensuring energy efficiency even in extended operation scenarios.
Engineered for durability and optimal functionality, the TL9801 operates across a wide temperature range from -5°C to +60°C, making it suitable for use in both indoor and outdoor environments. With an operating humidity range of 20% to 80%, the device is built to withstand different environmental conditions. Additionally, it is designed for storage in temperatures between -20°C and +60°C with the same humidity range, offering flexibility in storage and transport. Whether used in challenging industrial conditions or routine video surveillance, the TL9801 is a dependable solution for seamless video transceiving with robust control and power efficiency.
Features:
- Supports Sony FCB-EV7520A camera block
- Supports Tamron MP1110M-VC and MP2030M-GS camera blocks
- Supports AZM-FS10L, AZM-FS20L, and AZM-FS30L camera blocks
- CVBS analog video output
- USB2 UART-based camera control
- Supply voltage: 9V to 12V DC regulated
Applications:
- Video surveillance
- Broadcast systems
- Industrial video monitoring
- Remote camera control
- Security cameras
- Video transmission systems
- Robotics
- Automated systems
INPUTS:
VideoCVBS Video from camera
CONTROL Rx USB2 (external)
CONTROL Rx 3.3V TTL from camera
OUTPUTS:
CONTROL Tx 3.3V TTL to camera
CONTROL TxUSB2 (external)
VIDEO CVBS Video, pass through from camera
POWER INPUT:
9V TO 12V regulated
Power consumption (MP1110M-VC + TL9801) 3.2 W (cam motors inactive)
OPERATING CONDITIONS:
Ambient Temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
