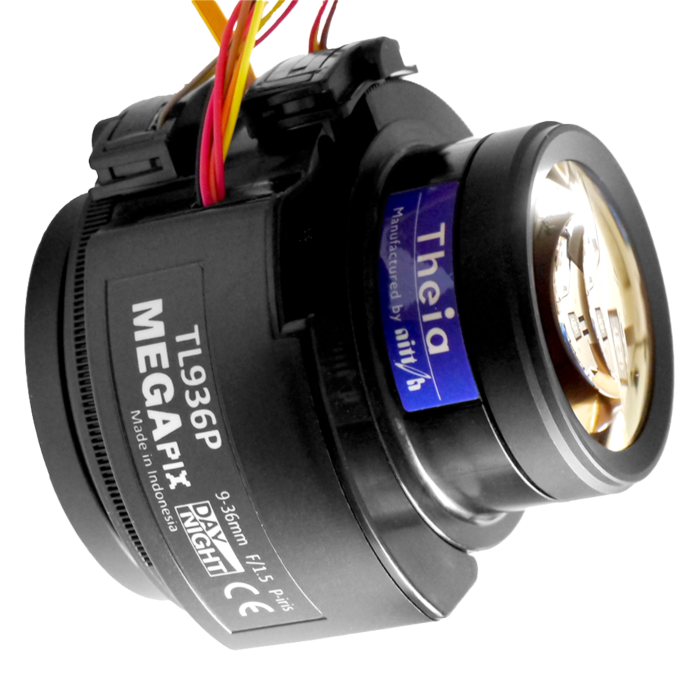

Theia TL936P R6 25 Motorized 5+ Megapixel Telephoto Lens

Explore unparalleled imaging with Theia TL936P R6 25. Elevate industrial vision with 5+ megapixel resolution, motorized controls, and versatile compatibility. Take a closer look today!
SKU
TL936P R6 25

Unleash Precision with Theia TL936P R6 25 Motorized Telephoto Lens

Discover the exceptional Theia TL936P R6 25, offering an impressive 9-36 mm focal range for industrial and machine vision applications. Boasting up to 5-megapixel resolution, this lens is 4K compatible and features fully motorized controls for zoom, focus, and iris adjustments. Some models even include IR cut and limit switches for enhanced functionality.

Designed for 1/2.3" sensor sizes or smaller, this lens ensures ultra-high resolution imaging. Its compact design allows it to fit seamlessly into domes as small as 4", making it an ideal choice for diverse industrial setups. The IR correction facilitates superior Day/Night vision, adding versatility to surveillance applications.

Features:

  • Ultra-high resolution, standard focal range lens
  • 9-36 mm focal range for versatility
  • Up to 5-megapixel resolution, 4K compatible
  • Fully motorized controls for zoom, focus, and iris
  • IR correction for superior Day/Night vision
  • Compact design to fit 4” mini-dome sizes
  • Compatible with 1/2.3" sensors or smaller
  • Optional features include IR cut and limit switches

Applications:

  • Machine Vision for precise industrial analysis
  • Industrial Surveillance with high-resolution footage
  • Quality Control to ensure accuracy in production
  • Robotics for effective environmental perception
  • Remote Monitoring in challenging environments
TL936P R6 25
Focal Length 9-36mm
Image Circle Ø9.2mm at FL 9mm
Resolution 5+ megapixel
F/# F/1.5 to close
Focus Range 2.5m to infinity
IR Correction 440nm – 950nm (Day/Night)
Lens Length (TTL) <62.5mm (TTL)
Back Focal Length (BFL) 8.7mm (in air)
Relative Illumination >30%
Lens Transmission >80%
Operating Temperature -20C to 60C (<70% humidity, non-condensing)
Storage Temperature -20C to 70C (<90% humidity, non-condensing)
CS Mount Slip Range 320°
