Theia TL936P R4 CS Angled View

Theia TL936P R4 CS Motorized 5+ Megapixel Telephoto Lens

Theia TL936P R6 25 Angled View

Theia TL936P R6 25 Motorized 5+ Megapixel Telephoto Lens

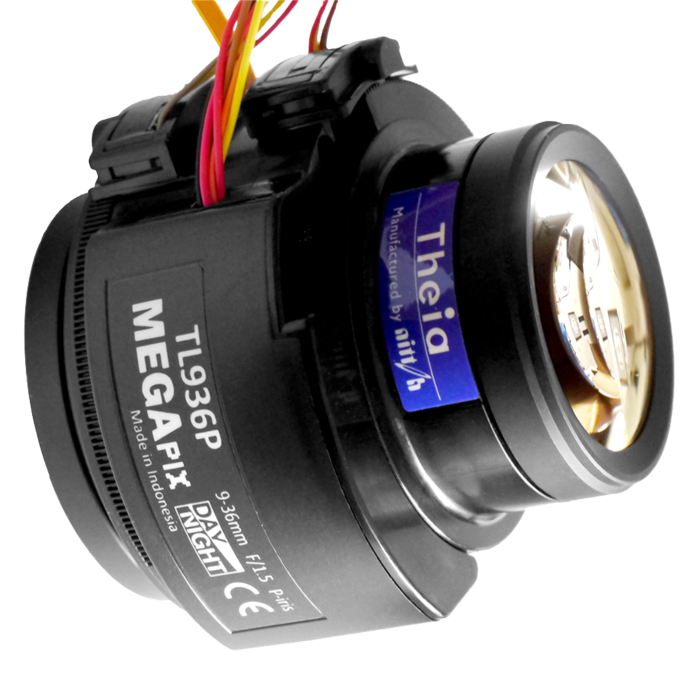

Theia TL936P R5 CS Motorized 5+ Megapixel Telephoto Lens

Elevate your imaging capabilities with Theia TL936P R5 CS Motorized Lens - 5+ MP resolution, IR corrected, and fully motorized for precise control. Ideal for industrial vision applications.
SKU
TL936P R5 CS

Unleashing Precision and Power: Theia TL936P R5 CS Motorized Telephoto Lens

In the realm of industrial optics, the Theia TL936P R5 CS Motorized Telephoto Lens from Aegis Electronic Group stands as a beacon of cutting-edge imaging excellence. With an expansive 9-36 mm focal range, this lens delivers ultra-high resolution, supporting up to 5 megapixels and ensuring compatibility with 4K imaging systems. Its fully motorized design empowers users with dynamic control over zoom, focus, and iris functions, offering unparalleled precision in imaging.

Beyond its technical prowess, the lens is IR corrected for flawless Day/Night vision, providing clear and detailed images in varying lighting conditions. The compact design allows seamless integration into small domes as small as 4 inches, expanding its versatility in diverse industrial settings.

Equipped with optional features such as infrared (IR) cut capabilities and limit switches, the Theia TL936P R5 CS lens offers enhanced flexibility to meet the demands of specialized applications. From industrial automation and machine vision systems to surveillance, security, and robotics, this lens is a pivotal tool for quality control and inspection. Elevate your imaging capabilities and explore new frontiers with the precision and power of Theia TL936P R5 CS Motorized Telephoto Lens.

Features:

  • Ultra high resolution, 5+ MP
  • Motorized zoom, focus, and iris
  • IR corrected for Day/Night vision
  • Compact design for 4” mini-dome size
  • 4K compatible
  • Limit switches for enhanced control

Applications:

  • Industrial automation
  • Machine vision systems
  • Surveillance and security
  • Robotics and AI integration
  • Quality control and inspection
TL936P R5 CS
Focal Length 9-36mm
Image Circle Ø9.2mm at FL 9mm
Resolution 5+ megapixel
F/# F/1.5 to close
Focus Range 2.5m to infinity
IR Correction 440nm – 950nm (Day/Night)
Lens Length (TTL) <62.5mm (TTL)
Back Focal Length (BFL) 8.7mm (in air)
Relative Illumination >30%
Lens Transmission >80%
Operating Temperature -20C to 60C (<70% humidity, non-condensing)
Storage Temperature -20C to 70C (<90% humidity, non-condensing)
CS Mount Slip Range 320°
