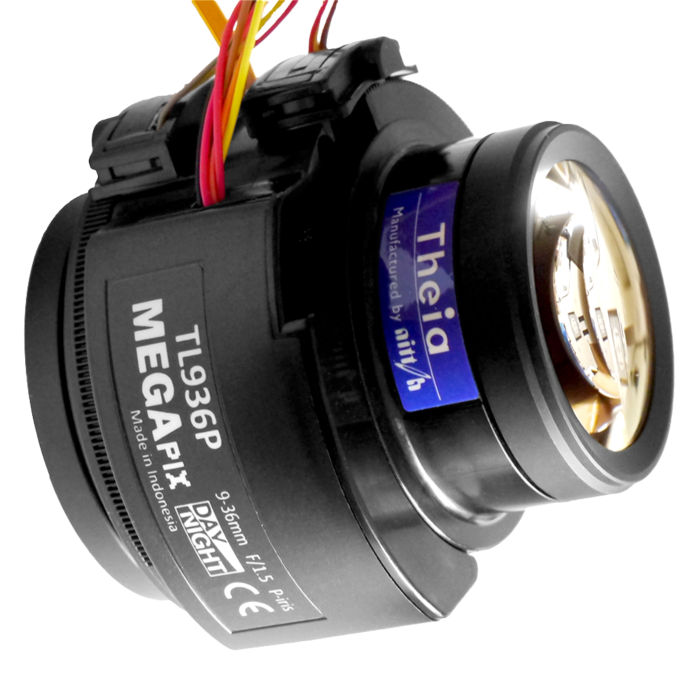

Theia TL936P R3 CS Motorized 5+ Megapixel Telephoto Lens

Discover unparalleled precision with Aegis Electronic Group's Theia TL936P R3 CS Motorized Lens. Elevate your industrial imaging capabilities. Explore now!
SKU
TL936P R3 CS

High-Resolution Precision for Industrial Vision

The Theia TL936P R3 CS Motorized Lens by Aegis Electronic Group stands out as an exemplary solution in the realm of industrial camera lenses. Boasting an ultra-high resolution and a versatile 9-36 mm focal range, this lens is engineered for 5+ megapixel resolution and 4K compatibility. Its fully motorized features encompass zoom, focus, and iris control, with some models featuring infrared (IR) cut capabilities and limit switches. Notably, it is IR corrected for Day/Night applications, providing optimal performance in varying lighting conditions.

Designed to fit seamlessly into compact spaces, including 4" mini-domes, this lens caters to 1/2.3" sensor sizes or smaller, making it an ideal choice for diverse industrial and machine vision applications. The compact design doesn't compromise on functionality, offering a comprehensive solution for precision imaging needs. Whether deployed in manufacturing, quality control, or surveillance, the Theia TL936P R3 CS lens ensures unmatched image clarity and adaptability. Elevate your industrial imaging experience with Aegis Electronic Group's cutting-edge lens technology.

Features:

  • Ultra-high resolution
  • 9-36 mm focal range
  • 5+ megapixel resolution, 4K compatible
  • Fully motorized with zoom, focus, and iris control
  • IR corrected for Day/Night
  • Compact design for 4" mini-domes
  • Suitable for 1/2.3" sensor sizes or smaller

Applications:

  • Industrial imaging
  • Machine vision
  • Manufacturing
  • Quality control
  • Surveillance
TL936P R3 CS
Focal Length 9-36mm
Image Circle Ø9.2mm at FL 9mm
Resolution 5+ megapixel
F/# F/1.5 to close
Focus Range 2.5m to infinity
IR Correction 440nm – 950nm (Day/Night)
Lens Length (TTL) <62.5mm (TTL)
Back Focal Length (BFL) 8.7mm (in air)
Relative Illumination >30%
Lens Transmission >80%
Operating Temperature -20C to 60C (<70% humidity, non-condensing)
Storage Temperature -20C to 70C (<90% humidity, non-condensing)
CS Mount Slip Range 320°
