Theia TL936A R5 CS Motorized 5+ Megapixel Telephoto Lens
Elevate your industrial imaging with Theia TL936A R5 CS Lens – a motorized 5+ megapixel powerhouse offering high resolution, 4K compatibility, and compact design. Ideal for machine vision applications.
SKU
TL936A R5 CS

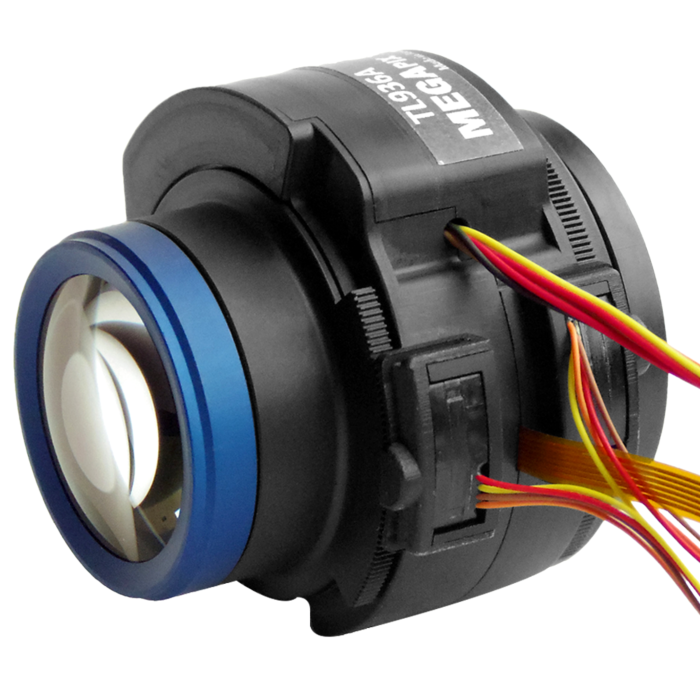

Theia TL936A R5 CS Motorized 5+ Megapixel Telephoto Lens
Unlock the potential of industrial imaging with Theia TL936A R5 CS Lens. This ultra-high-resolution, standard focal range lens boasts a 9-36 mm focal range, catering to 5+ megapixel resolution and 4K compatibility. Fully motorized with zoom, focus, and iris control, some models include IR cut and limit switches. The lens is IR-corrected for Day/Night functionality and features a compact design tailored for 1/2.3" sensor sizes or smaller, fitting seamlessly into 4" mini-dome enclosures.
Features:
- 4K compatible
- Motorized zoom, focus, and iris
- IR-corrected for Day/Night use
- Compact design for 4" mini-domes
- IR cut and limit switches for versatility
- Compatible with 1/2.3" to 1/1.7" sensors
Applications:
| TL936A R5 CS | |
| Focal Length | 9-36mm |
| Image Circle | Ø9.2mm at FL 9mm |
| Resolution | 5+ megapixel |
| F/# | F/1.5 to close |
| Focus Range | 2.5m to infinity |
| IR Correction | 440nm – 950nm (Day/Night) |
| Lens Length (TTL) | <62.5mm (TTL) |
| Back Focal Length (BFL) | 8.7mm (in air) |
| Relative Illumination | >30% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -20C to 70C (<90% humidity, non-condensing) |
| CS Mount Slip Range | 320° |
