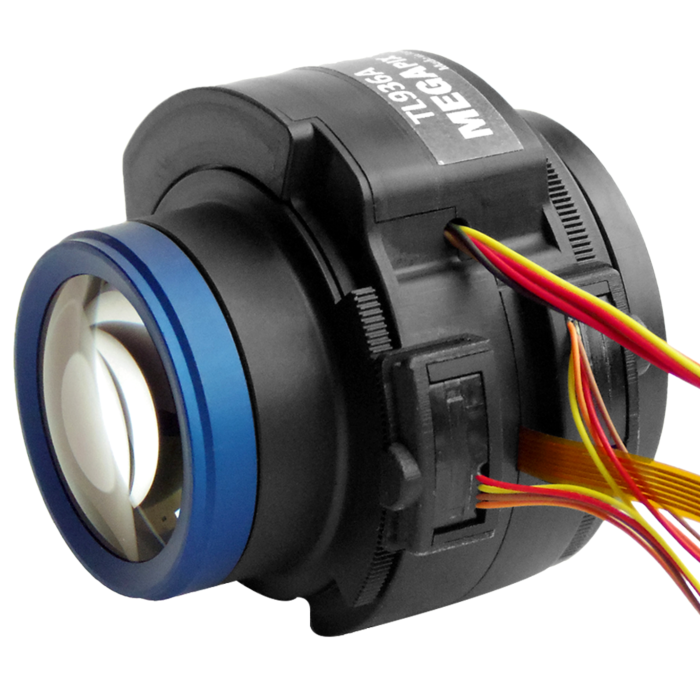

Theia TL936A R4 CS Motorized 5+ Megapixel Telephoto Lens
Unleash Precision with Theia TL936A R4 CS Motorized Lens
The Theia TL936A R4 CS Motorized Lens stands at the forefront of industrial camera technology, offering an ultra-high resolution with a standard focal range of 9-36 mm. With a remarkable 5+ megapixel resolution and 4K compatibility, this lens is fully motorized, providing seamless control over zoom, focus, and iris adjustments. Some models even feature IR cut functionality and limit switches for enhanced versatility. Specifically designed for 1/2.3" sensor sizes or smaller, it is IR corrected for Day/Night vision applications.
Its compact design allows it to fit into domes as small as 4", making it an ideal choice for space-constrained environments. Whether you're in machine vision or industrial settings, the precision of the Theia TL936A R4 CS ensures unparalleled image clarity. Its robust construction and advanced features make it a reliable choice for demanding applications.
Features:
- Motorized zoom, focus, and iris
- IR-corrected for Day/Night use
- Compact design for 4" mini-domes
- IR cut and limit switches for versatility
- Compatible with 1/2.3" to 1/1.7" sensors
Applications:
| TL936A R4 CS | |
| Focal Length | 9-36mm |
| Image Circle | Ø9.2mm at FL 9mm |
| Resolution | 5+ megapixel |
| F/# | F/1.5 to close |
| Focus Range | 2.5m to infinity |
| IR Correction | 440nm – 950nm (Day/Night) |
| Lens Length (TTL) | <62.5mm (TTL) |
| Back Focal Length (BFL) | 8.7mm (in air) |
| Relative Illumination | >30% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -20C to 70C (<90% humidity, non-condensing) |
| CS Mount Slip Range | 320° |
