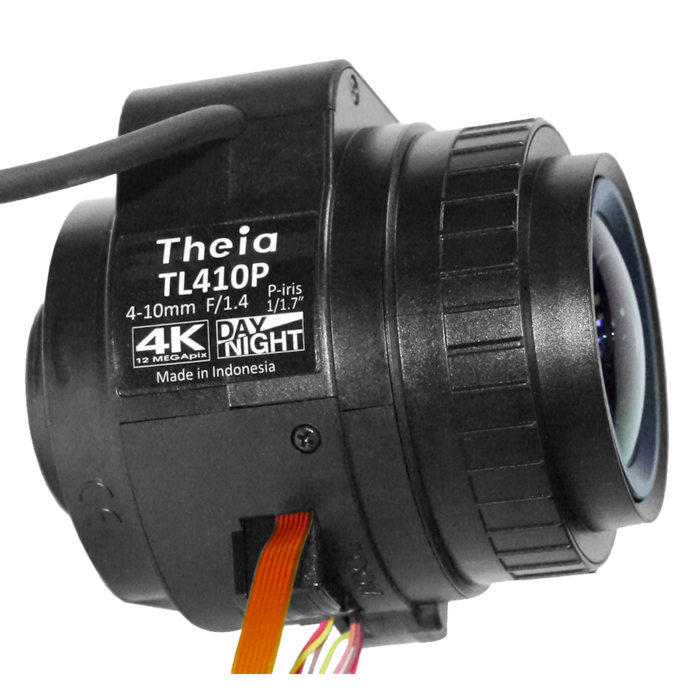

Theia TL410P R6 CS Motorized 4K Lens
Discover Cutting-Edge Precision with Theia TL410P R6 CS Motorized 4K Lens
Step into the future of industrial imaging with Theia TL410P R6 CS Motorized 4K Lens by Aegis Electronic Group. This ultra-high resolution lens boasts a 4-10mm focal range, delivering true 4K, 12-megapixel clarity. Fully motorized, it offers exceptional control over zoom, focus, and iris functions, making it an ideal choice for industrial and machine vision applications.
Designed for versatility, the lens is IR-corrected for Day/Night use, ensuring optimal performance in varying lighting conditions. Its compact form factor allows seamless integration into domes as small as 4 inches, making it perfect for space-constrained environments. The inclusion of IR cut and limit switches enhances its adaptability to diverse imaging scenarios.
With compatibility across 1/2.3" up to 1/1.7" sensor sizes, this lens caters to a wide range of industrial cameras. Its precision engineering and robust features make it an indispensable tool for applications such as quality control, robotics, and automation. Elevate your imaging capabilities with Aegis Electronic Group's Theia TL410P R6 CS Motorized 4K Lens and experience the pinnacle of optical innovation.
Features:
- Ultra-high 4K resolution
- Motorized zoom, focus, and iris
- IR-corrected for Day/Night use
- Compact design for 4" mini-domes
- IR cut and limit switches for versatility
- Compatible with 1/2.3" to 1/1.7" sensors
Applications:
| TL410P R6 CS | |
| Mount Type | D25 Board Mount |
| Focal Length | 4-10mm |
| Iris Type | P-Iris |
| Image Circle | Ø9.4mm at FL 4mm |
| Resolution | 12.4 megapixel |
| F/# | F/1.4 @ 4mm - F/2.4 @ 10mm to close |
| IR Correction | 440nm – 950nm (Day/Night) |
| Focus Range | 0.5m - infinity |
| Lens Length (TTL) | < 64mm TTL |
| Back Focal Length (BFL) | 8.4mm (in air) |
| Chief Ray Angle (CRA) | < 7° |
| Geometric Distortion | < 61% at 4mm, < 8% at 10mm |
| Relative Illumination | >45% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -30C to 70C (<90% humidity, non-condensing) |
