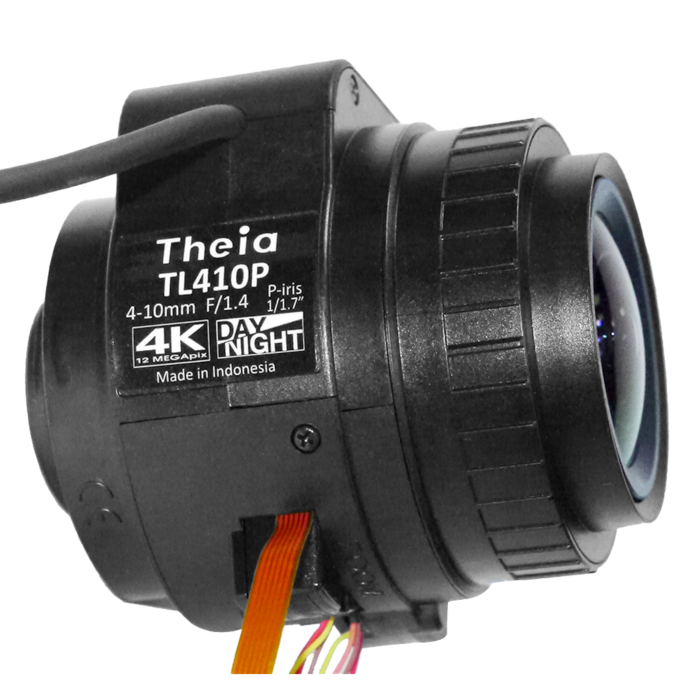

Theia TL410P R6 25 Motorized 4K Lens
Unleashing Precision: Theia TL410P R6 25 Motorized 4K Lens
Theia TL410P R6 25 Motorized 4K Lens: Ultra High-Resolution Excellence
Unleash the power of industrial imaging with Theia TL410P R6 25, a cutting-edge motorized 4K lens designed by Aegis Electronic Group. This lens boasts a 4-10mm focal range, providing versatility in capturing intricate details. With true 4K resolution and 12-megapixel clarity, it ensures unparalleled image quality in industrial and machine vision applications.
The fully motorized lens features zoom, focus, and iris controls, offering precise adjustments for diverse scenarios. Some models include IR cut and limit switches for enhanced functionality. The lens is IR-corrected for seamless Day/Night vision, making it a reliable choice for 24/7 surveillance.
Its compact design allows seamless integration into 4” mini-domes, catering to space-efficient setups. Compatible with sensor sizes ranging from 1/2.3" to 1/1.7", this lens ensures optimal performance across various camera systems.
Features:
- True 4K, 12-megapixel resolution
- Fully motorized with zoom, focus, and iris controls
- IR corrected for Day/Night vision
- Compact design for 4” mini-domes
- Compatible with 1/2.3" to 1/1.7" sensor sizes
Applications:
- Industrial Surveillance
- Machine Vision Systems
- Quality Control
- Robotics and Automation
- Traffic Monitoring
| TL410P R6 25 | |
| Mount Type | D25 Board Mount |
| Focal Length | 4-10mm |
| Iris Type | P-Iris |
| Image Circle | Ø9.4mm at FL 4mm |
| Resolution | 12.4 megapixel |
| F/# | F/1.4 @ 4mm - F/2.4 @ 10mm to close |
| IR Correction | 440nm – 950nm (Day/Night) |
| Focus Range | 0.5m - infinity |
| Lens Length (TTL) | < 64mm TTL |
| Back Focal Length (BFL) | 8.4mm (in air) |
| Chief Ray Angle (CRA) | < 7° |
| Geometric Distortion | < 61% at 4mm, < 8% at 10mm |
| Relative Illumination | >45% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -30C to 70C (<90% humidity, non-condensing) |
