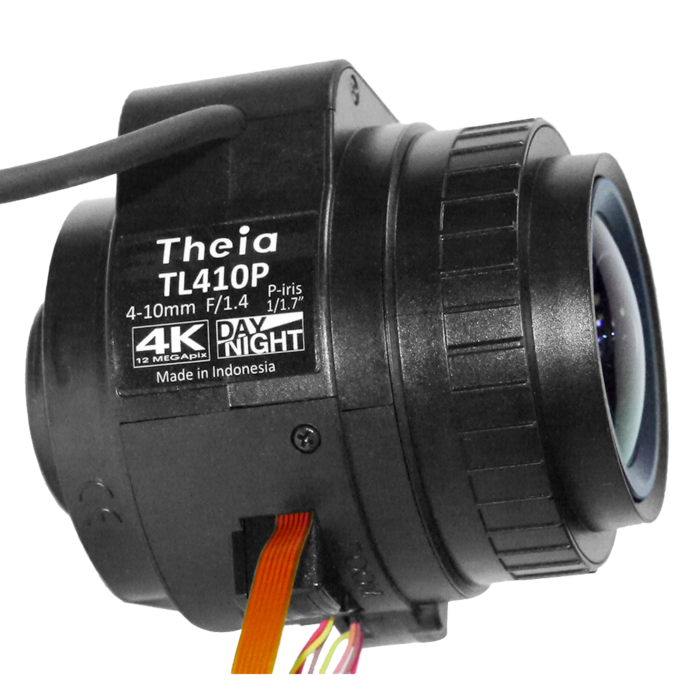

Theia Tl410P R5 CS Motorized 4K Lens
Unveiling Precision: Theia TL410P R5 CS 4K Motorized Lens
Delve into the world of cutting-edge industrial imaging with Theia TL410P R5 CS. This motorized 4K lens boasts a true 12-megapixel resolution and a versatile 4-10mm focal range. Its fully motorized features include zoom, focus, and iris control, with additional options like IR cut and limit switches. Designed for compact integration, it effortlessly fits into 4" mini-domes, offering a seamless solution for diverse applications.
The lens supports sensor sizes ranging from 1/2.3" to 1/1.7", providing flexibility for various industrial and machine vision setups. Its IR correction ensures optimal performance in both day and night conditions, making it a versatile choice for 24/7 surveillance. Aegis Electronic Group presents a lens that sets new standards in ultra-high resolution imaging, empowering industries with unparalleled precision and clarity.
Features:
- True 4K, 12-megapixel resolution
- Motorized zoom, focus, and iris control
- Compact design for 4" mini-domes
- IR correction for Day/Night functionality
- Supports 1/2.3" up to 1/1.7" sensor sizes
Applications:
- Industrial Automation
- Quality Control
- Robotics
- Surveillance Systems
- Machine Vision Inspection
| TL410P R5 CS | |
| Mount Type | CS-Mount |
| Focal Length | 4-10mm |
| Iris Type | P-Iris |
| Image Circle | Ø9.4mm at FL 4mm |
| Resolution | 12.4 megapixel |
| F/# | F/1.4 @ 4mm - F/2.4 @ 10mm to close |
| IR Correction | 440nm – 950nm (Day/Night) |
| Focus Range | 0.5m - infinity |
| Lens Length (TTL) | < 64mm TTL |
| Back Focal Length (BFL) | 8.4mm (in air) |
| Chief Ray Angle (CRA) | < 7° |
| Geometric Distortion | < 61% at 4mm, < 8% at 10mm |
| Relative Illumination | >45% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -30C to 70C (<90% humidity, non-condensing) |
