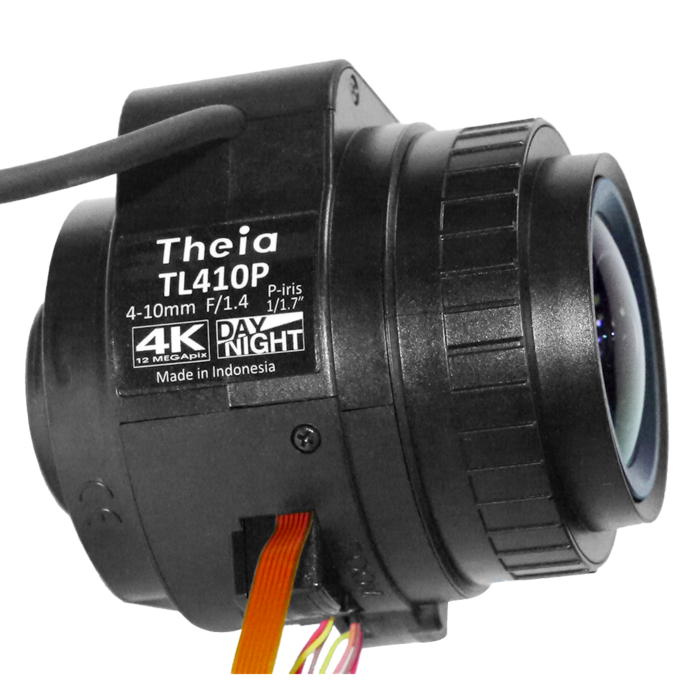

Theia TL410P R4 CS Motorized 4K Lens
Unleashing Precision: Theia TL410P R4 CS Motorized 4K Lens
The Theia TL410P R4 CS Motorized 4K Lens redefines imaging precision in the industrial camera realm. With a versatile 4-10mm focal range and true 4K, 12-megapixel resolution, this lens offers unparalleled clarity. Its fully motorized capabilities encompass zoom, focus, and iris control, catering to diverse industrial needs. The compact design ensures compatibility with mini-domes as small as 4", making it ideal for space-constrained environments. Day/Night IR correction enhances performance across varying lighting conditions. The inclusion of limit switches further enhances user control. Supporting sensor sizes from 1/2.3" up to 1/1.7", this lens delivers uncompromised quality for industrial and machine vision applications.
Features:
- Ultra-high 4K resolution
- Motorized zoom, focus, iris
- 4-10mm focal range
- Day/Night IR correction
- Compact design for 4" mini-domes
- Limit switches for added control
- Supports 1/2.3" to 1/1.7" sensor sizes
Applications:
- Industrial imaging
- Machine vision systems
- Surveillance
- Robotics
- Automation
- Quality control
- Manufacturing
- Security
- Inspection systems
- Research and development
| TL410P R4 CS | |
| Mount Type | CS-Mount |
| Focal Length | 4-10mm |
| Iris Type | P-Iris |
| Image Circle | Ø9.4mm at FL 4mm |
| Resolution | 12.4 megapixel |
| F/# | F/1.4 @ 4mm - F/2.4 @ 10mm to close |
| IR Correction | 440nm – 950nm (Day/Night) |
| Focus Range | 0.5m - infinity |
| Lens Length (TTL) | < 64mm TTL |
| Back Focal Length (BFL) | 8.4mm (in air) |
| Chief Ray Angle (CRA) | < 7° |
| Geometric Distortion | < 61% at 4mm, < 8% at 10mm |
| Relative Illumination | >45% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -30C to 70C (<90% humidity, non-condensing) |
