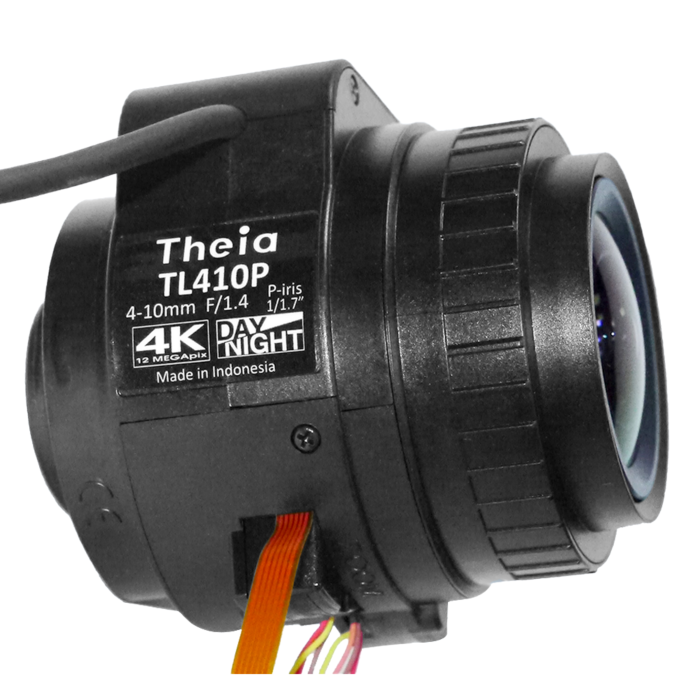

Theia TL410P R3 CS Motorized 4K Lens
Discover Theia TL410P R3 CS Motorized 4K Lens
Unleash the power of advanced imaging with Theia TL410P R3 CS, a cutting-edge motorized 4K lens from Aegis Electronic Group. This industrial marvel features a focal range of 4-10mm, providing ultra-high resolution and true 4K capability with a 12-megapixel sensor. Fully motorized, it empowers users with dynamic control over zoom, focus, and iris functions. Some models include additional features like IR cut filters and limit switches, ensuring versatile adaptability in various applications.
Crafted for precision, this lens is IR corrected for Day/Night functionality, enhancing imaging clarity across different lighting conditions. Its compact design allows seamless integration into small 4” mini-domes, making it an ideal choice for space-conscious environments. Compatible with sensors ranging from 1/2.3" to 1/1.7", it accommodates diverse industrial and machine vision setups.
The Theia TL410P R3 CS lens is more than just a lens; it's a gateway to enhanced imaging solutions. Elevate your industrial and machine vision applications with this lens, providing unmatched clarity and control in every frame.
Features:
| TL410P R3 CS | |
| Mount Type | CS-Mount |
| Focal Length | 4-10mm |
| Iris Type | P-Iris |
| Image Circle | Ø9.4mm at FL 4mm |
| Resolution | 12.4 megapixel |
| F/# | F/1.4 @ 4mm - F/2.4 @ 10mm to close |
| IR Correction | 440nm – 950nm (Day/Night) |
| Focus Range | 0.5m - infinity |
| Lens Length (TTL) | < 64mm TTL |
| Back Focal Length (BFL) | 8.4mm (in air) |
| Chief Ray Angle (CRA) | < 7° |
| Geometric Distortion | < 61% at 4mm, < 8% at 10mm |
| Relative Illumination | >45% |
| Lens Transmission | >80% |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -30C to 70C (<90% humidity, non-condensing) |
