Theia TL410A R4 CS Angled View

Theia TL410A R4 CS Motorized 4K Lens

Theia TL410A R6 CS Motorized 4K Lens

Theia TL410A R6 CS Motorized 4K Lens

Theia TL410A R5 CS Motorized 4K Lens

Experience unrivaled clarity with Theia TL410A R5 CS 4K motorized lens. Ideal for industrial imaging, its compact design and motorized controls redefine optical precision. Elevate your machine vision with Aegis Electronic Group's cutting-edge solutions.
TL410A R5 CS

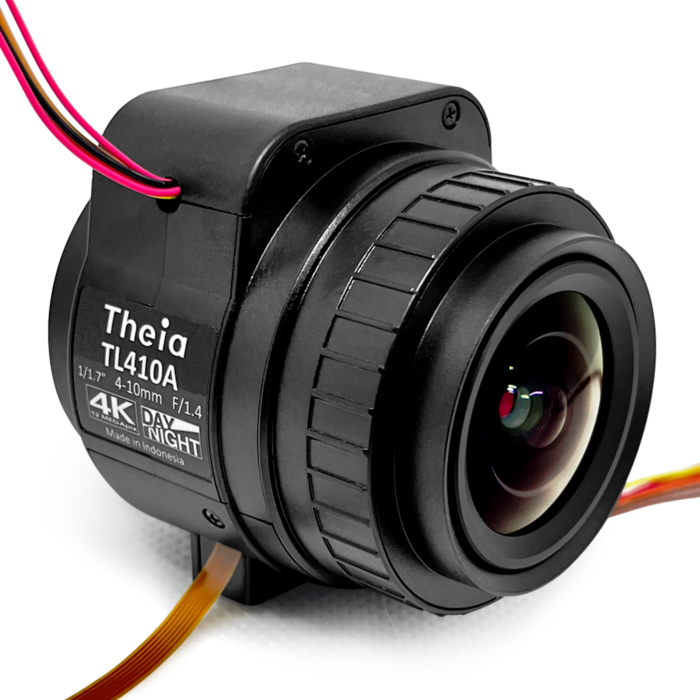

Unrivaled Precision with Theia TL410A R5 CS Motorized 4K Lens

Step into the future of industrial imaging with Theia TL410A R5 CS, a cutting-edge 4K motorized lens designed for machine vision applications. This ultra-high-resolution lens offers a standard focal range of 4-10mm, providing impeccable clarity with its true 4K, 12-megapixel resolution. Fully motorized, it boasts zoom, focus, and iris controls, with some models featuring IR cut and limit switches for enhanced functionality.

The compact design allows seamless integration into domes as small as 4", making it an ideal choice for space-constrained environments. The lens is IR corrected for Day/Night applications, ensuring optimal performance in various lighting conditions. Supporting sensor sizes from 1/2.3" up to 1/1.7", the lens is versatile and adaptable to different industrial imaging setups.

With DC Auto Iris technology, the Theia TL410A R5 CS lens delivers precise exposure control, enhancing the overall imaging experience. Whether used in manufacturing, quality control, or other machine vision applications, this lens sets a new standard for optical excellence. Elevate your industrial imaging capabilities with Aegis Electronic Group, your trusted partner in precision optical solutions.


  • True 4K, 12-megapixel resolution
  • Motorized zoom, focus, and iris
  • IR corrected for Day/Night
  • Compact design for 4" mini-domes
  • Supports sensor sizes from 1/2.3" to 1/1.7"
  • DC Auto Iris for precise exposure control


  • Manufacturing quality control
  • Machine vision systems
  • Industrial imaging technology
TL410A R5 CS
Mount Type CS-Mount
Focal Length 4-10mm
Iris Type P-Iris
Image Circle Ø9.4mm at FL 4mm
Resolution 12.4 megapixel
F/# F/1.4 @ 4mm - F/2.4 @ 10mm to close
IR Correction 440nm – 950nm (Day/Night)
Focus Range 0.5m - infinity
Lens Length (TTL) < 64mm TTL
Back Focal Length (BFL) 8.4mm (in air)
Chief Ray Angle (CRA) < 7°
Geometric Distortion < 61% at 4mm, < 8% at 10mm
Relative Illumination >45%
Lens Transmission >80%
Weight 75g
Operating Temperature -20C to 60C (<70% humidity, non-condensing)
Storage Temperature -30C to 70C (<90% humidity, non-condensing)
