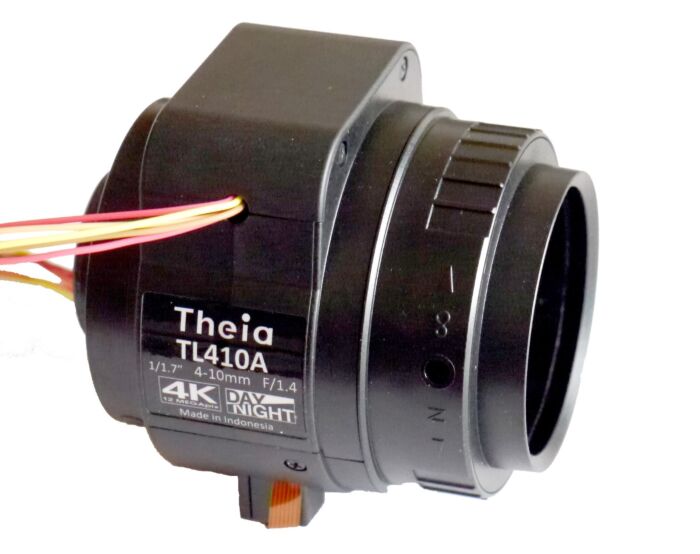

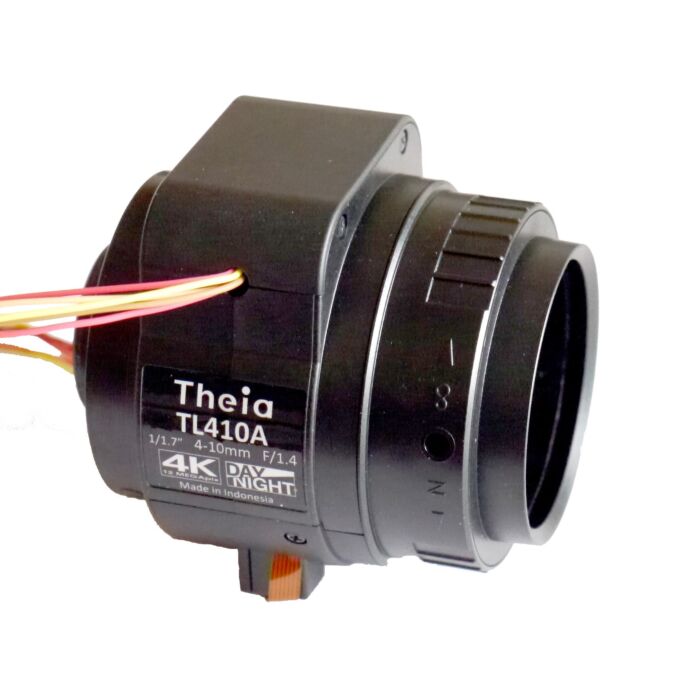

Theia TL410 1/1.7" format, motorized zoom & focus 4K Motorized Lens
SKU
Theia TL410 4K Motorized Lens
Quick Overview
4-10mm, 4k 12mp, Day/Night, DC auto iris, CS mount lens Available Lens Options: - TL410A R3 CS - TL410A R4 CS - TL410A R5 CS - TL410A R6 CS - TL410P R3 CS - TL410P R4 CS - TL410P R5 CS - TL410P R6 CS - TL410A R3 CS - R3 = Motorized Zoom & Focus - R4 = Motorized Zoom, Focus & IR cut - R5 = Motorized Zoom & Focus, Photo-Interrupter Motor Stops
Theia's standard focal range TL410 lens is designed for true 4K resolution. This is the motorized version of the SL410 lens. With varifocal length from 4-10mm and superior imaging performance, the TL410 can be used with image sensors from 1/2.3" up to 1/1.7". It includes motors for zoom and focus, IR cut module, and limit indicators for zoom and focus ring positions (contact us for options with different motor configurations). The lens is designed to be very compact so it can be used in small enclosures such as 4" domes and bullet style cameras.
| Iris Type | DC Auto Iris |
| IR Cut Filter | Yes |
| Motorized Focus/Zoom | Yes |
| Focus/Zoom Limit Indicator | Yes, photo interrupter |
| Focal Length | 4m - 10mm |
| F/# | F/1.4 to closed |
| Resolution | True 4K resolution, 12 megapixels |
| Mount Type | CS-mount or D25 board mount |
