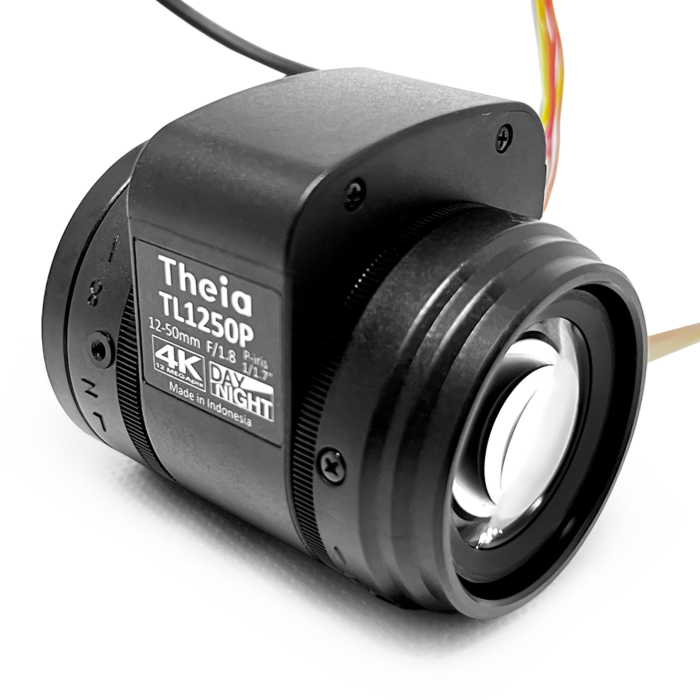

Theia TL1250P N3 CS Motorized 4k Telephoto Lens
Unleash Precision with Theia TL1250P N3 CS 4K Telephoto Lens
Elevate your industrial imaging capabilities with the Theia TL1250P N3 CS Motorized 4K Telephoto Lens from Aegis Electronic Group. Boasting an ultra-high resolution of true 4K with a 12-megapixel imaging capacity, this lens is designed for exceptional clarity in long-distance applications. Its fully motorized features include zoom, focus, and iris adjustments, providing unparalleled control for diverse imaging scenarios. Some models come equipped with IR cut and limit switches for added flexibility.
Crafted for 1/1.7" sensor sizes or smaller, this lens offers IR correction for seamless Day/Night vision. Its compact design enables seamless integration into domes as small as 4” mini-domes, featuring both thumb screw and optional set screw with a wrench for secure mounting. The Theia TL1250P N3 CS lens is a game-changer in industrial and machine vision applications, delivering precision and reliability for tasks demanding uncompromising image quality and control.
Features:
| TL1250P | |
| Mount Type | CS-Mount |
| Focal Length | 12-50mm |
| Iris Type | P-Iris |
| Image Circle | Ø9.4mm at FL 12mm |
| Resolution | 12.4 megapixel |
| F/# | F/1.8 @ 12mm - F/2.4 @ 50mm to close |
| IR Correction | 440nm – 950nm (Day/Night) |
| Focus Range | 2.0m - infinity |
| Lens Length (TTL) | 64mm TTL |
| Back Focal Length (BFL) | 8.2mm (in air) |
| Chief Ray Angle (CRA) | < 7° |
| Geometric Distortion | < 10% at 12mm, < 2% at 50mm |
| Relative Illumination | >40% |
| Lens Transmission | >80% |
| Weight | 70g |
| Operating Temperature | -20C to 60C (<70% humidity, non-condensing) |
| Storage Temperature | -30C to 70C (<90% humidity, non-condensing) |
