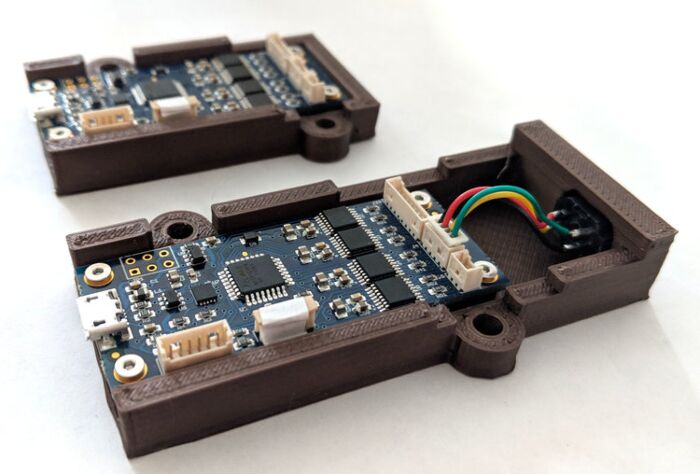

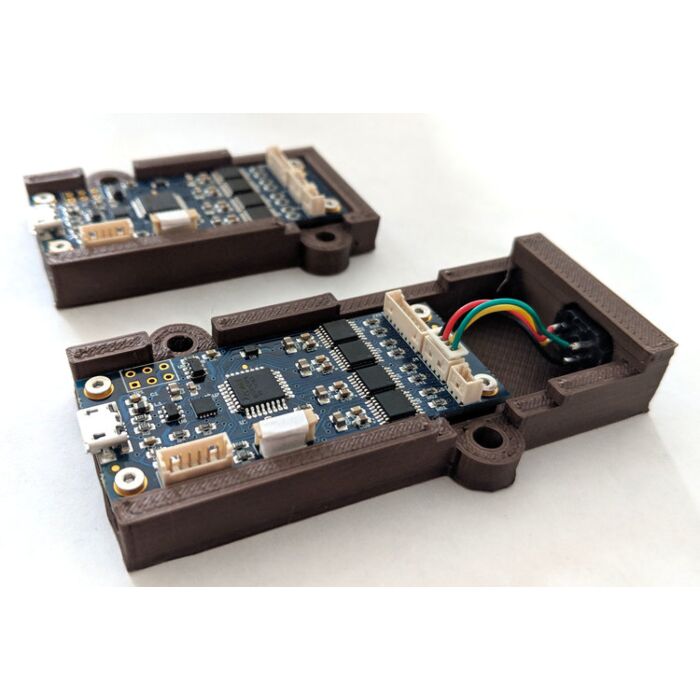

Theia MCR500 Motorized Lens Control Board

Theia MCR500 Motorized Lens Control Board

Theia MCR600 Motorized Lens Control Board

SKU
Theia MCR600 Motorized Lens Control Board
For ease of evaluating Theia’s motorized lenses Theia offers a motor control board. This board allows the user to control zoom, focus, P-iris, and IR cut filters (there is no control for DC autoiris lenses). For evaluation, we offer a Windows based test program to communicate over USB. You may also communicate over i2c or UART from within your own program. Details are covered in the instruction manual from the link below, as well as CAD model and drawing of the board.
Supported Lenses TL1250P, TL936P, TL410P, ML410P
Supported Lens Versions -R4 and -R6
Iris Support P-iris only
Board Size (without cables) 60mm x 25mm x 10mm
Board Size with base 67mm x 45mm x 12mm
Board Weight without base 10g
Mounting Holes 4x M2 or 2x M4 with plastic housing
Operating Voltage 5V (via USB or pin)
Operating Current (single motor movement) Approx. 250mA
Max Operating Current Up to 800mA
