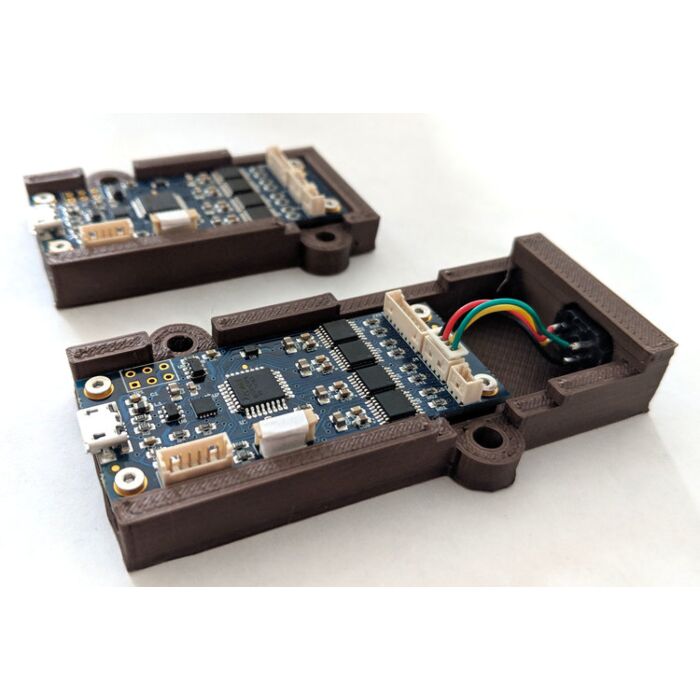

Theia MCR500 Motorized Lens Control Board

For ease of evaluating Theia’s motorized lenses Theia offers a motor control board. This board allows the user to control zoom, focus, P-iris, and IR cut filters (there is no control for DC autoiris lenses). For evaluation, we offer a Windows based test program to communicate over USB. You may also communicate over i2c or UART from within your own program. Details are covered in the instruction manual from the link below, as well as CAD model and drawing of the board.

Supported Lenses	TL1250P, TL936P, TL410P, ML410P
Supported Lens Versions	-R3 and -R5
Iris Support	P-iris only
Board Size (without cables)	60mm x 25mm x 10mm
Board Size with base	87mm x 45mm x 12mm
Board Weight without base	10g
Mounting Holes	4x M2 or 2x M4 with plastic housing
Operating Voltage	5V (via USB or pin)
Operating Current (single motor movement)	Approx. 250mA
Max Operating Current	Up to 800mA
