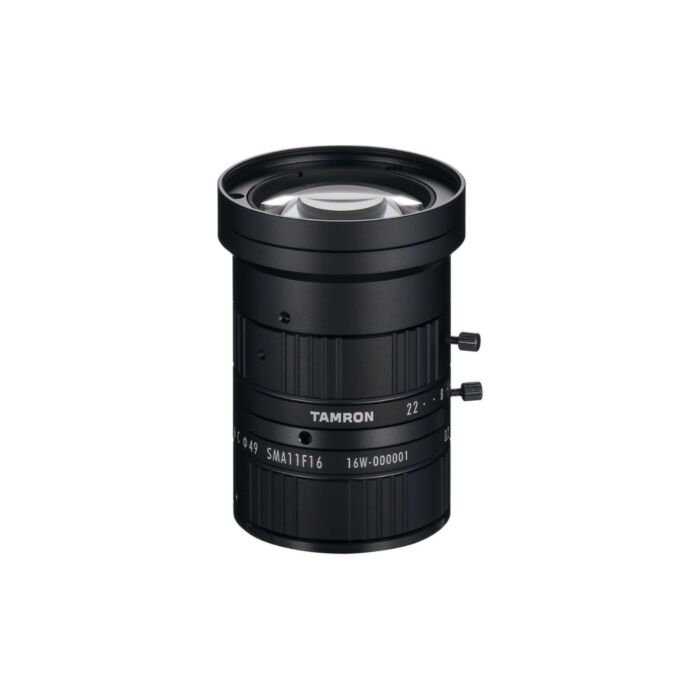

Tamron SMA11F16 1" 16mm Wide Spectral Band SWIR Lens

The Tamron SMA11F16 1" 16mm Wide Spectral Band SWIR Lens stands out as a pinnacle of optical engineering, specially crafted for the demanding needs of industrial and machine vision applications. With a sensor size of 1 inch and a focal length of 16mm, this lens is designed for versatility across various fields, including food processing and medical imaging. It boasts an impressive F# of 1.6, enabling exceptional light transmission and performance even in low-light environments.

A standout feature is its significant reduction of focus-shift between the visible and SWIR bands, ensuring precise imaging across a broad spectrum from 400 nm to 1700 nm. This makes it an optimal choice for machine vision systems that require consistent image quality across different wavelengths. The lens also demonstrates an industry-leading spectrum transmittance of around 80%, thanks to Tamron's proprietary coating technology.

Furthermore, the SMA11F16 enhances imaging performance at close-up distances, perfect for applications where detail is paramount. Its compatibility with 5µm pixel pitch imagers, like Sony's IMX990/IMX991, ensures that users receive crisp, high-resolution images. This lens is not only engineered for performance but also built to withstand various operating conditions, making it an essential tool for industrial and machine vision professionals.

Features:

• Sensor Size: 1 inch
• Focal Length: 16mm
• Aperture Range: F/1.6 to F/22
• Focus-Shift Reduction: Minimizes focus-shift between visible and SWIR bands across 400 nm to 1700 nm
• Distortion: Very low TV distortion of -1.2%
• Spectrum Transmittance: Approx. 80% over the entire visible to SWIR spectrum
• Enhanced Imaging Performance: Optimized for close-up distances and compatible with 5µm pixel pitch imagers
• Operating Temperature Range: -20℃ to +60℃
• Manual Focus and Iris Locks: Ensures stability during operation

Applications:

• Food Processing: Enhances imaging for quality control, enabling clear inspection of products.
• Medical Imaging: Supports precise imaging necessary for diagnostics and surgical applications.
• Machine Vision Systems: Perfect for automated systems requiring high-resolution imaging in diverse environments, especially those utilizing both visible and SWIR bands.
