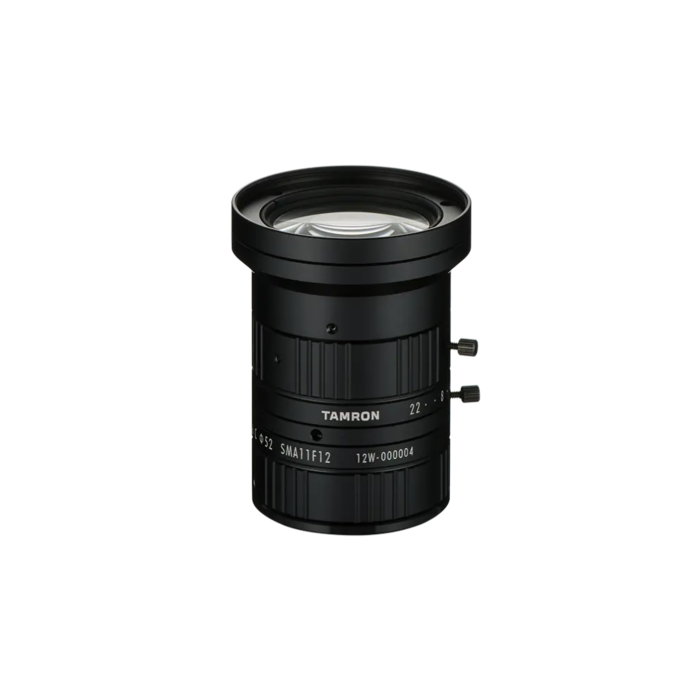

Tamron SMA11F12 1" Wide Spectral Band Lens (from Visible-Light to SWIR)

Tamron SMA11F12: High-Performance Industrial Vision Lens

Aegis Electronic Group Inc. proudly presents the Tamron SMA11F12 1" Wide Spectral Band Lens, a groundbreaking solution tailored for diverse Industrial and Machine Vision applications. This lens features a 12mm focal length and an imager size of 1", delivering an impressive angle of view of 57.9° x 44.6° in the 1" format. The aperture range of F/1.6 to F/22 allows for excellent light transmission, making it suitable for environments ranging from food processing plants to medical imaging facilities.

One of the standout features of the SMA11F12 is its significant reduction of focus-shift between the visible-light and SWIR bands, ensuring seamless performance across wavelengths from 400 to 1700 nm. With a low TV distortion of just -1.2%, this lens enhances image clarity and precision, crucial for applications requiring detailed inspection and measurement.

Additionally, the lens is designed with a manual lock for both focus and iris settings, allowing users to maintain optimal settings in dynamic industrial environments. Its robust construction is rated for operation in temperatures ranging from -20℃ to +60℃, ensuring reliability in varied conditions. This lens is an ideal choice for customers seeking high-performance imaging solutions that excel in both visible-light and SWIR applications.

Features:

• Imager Size: 1"
• Focal Length: 12mm
• Aperture Range: F/1.6 to F/22; T/1.8 to T/24.7
• Angle of View:
  • 1" Format: 57.9° x 44.6°
  • 2/3" Format: 41.1° x 31.1°
  • 1/2" Format: 30.2° x 24.3°
• Focus Range: 0.2m to infinity
• Focus and Iris Control: Manual lock for precision adjustments
• Filter Thread Diameter: M52 P=0.75
• Compatible Wavelengths: 400 to 1700nm (Wide Band Coating - Visible to Short Wave Infrared)
• Distortion: Low distortion at -1.2%
• Weight: 260g
• Operating Temperature Range: -20℃ to +60℃
• Enhanced Imaging Performance: Optimized for close-up distances with improved image contrast

Applications:

• Industrial Inspection: Ideal for quality control in manufacturing settings.
• Food Processing: Enables detailed imaging for sorting and inspection processes.
• Medical Imaging: Supports imaging applications requiring precise detail and accuracy.
• Research and Development: Useful in laboratories for spectral analysis and testing.
