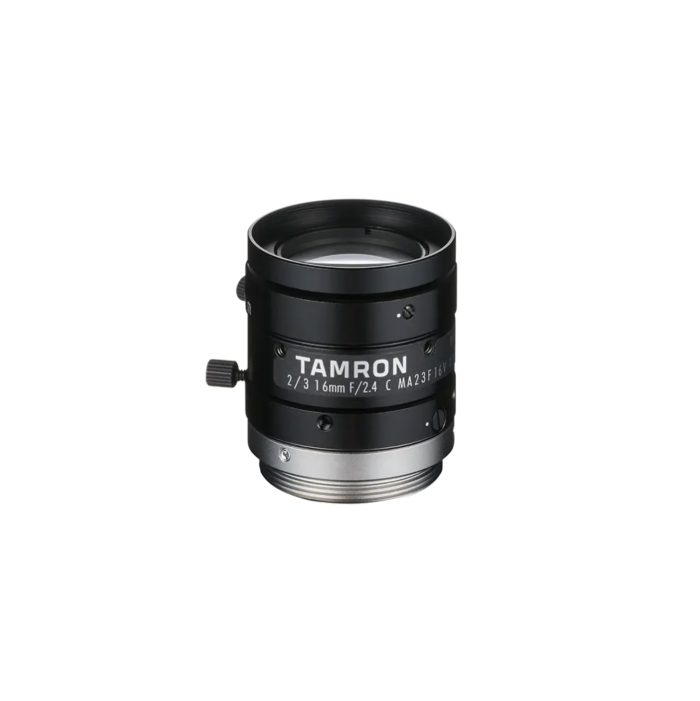

Tamron MA23F16V 2/3" Compact & Super High Resolution 8 MP Lens

Tamron MA23F16V: High-Resolution 2/3" 8 MP Lens for Industrial and Machine Vision Applications

The Tamron MA23F16V 2/3" lens, available through Aegis Electronic Group Inc., is designed for industrial and machine vision applications, delivering exceptional performance and versatility. With support for up to 8 MP resolution and a 2.74µm pixel pitch, this compact lens delivers unmatched resolution and contrast, making it ideal for precision-oriented tasks. The 16mm focal length and C-mount design provide compatibility with a wide range of camera systems, while the manual focus and iris locks offer precise control for users in dynamic industrial environments.

This lens series excels in applications requiring accurate, high-quality image capture, such as production equipment, circuit board inspection, test equipment, and traffic monitoring systems. The robust mechanical design withstands harsh industrial environments, offering anti-vibration and anti-shock mechanisms, essential for maintaining image clarity under severe conditions. With an aperture range of F/2.4 to F/16 and low distortion of -0.05%, this lens ensures high-contrast, sharp images at various distances and lighting conditions.

Customers in fields like railroad monitoring, surveillance, and social infrastructure benefit from the Tamron MA23F16V’s reliability and ruggedness. This lens guarantees consistent high-performance imaging, even in the most demanding industrial and machine vision applications.

Features:

1. High Resolution and Contrast – Supports up to 8 MP resolution with 2.74µm pixel pitch, delivering industry-leading image quality.
2. Low Distortion – Minimizes image distortion with advanced optics, featuring -0.05% distortion for the MA23F16V model.
3. Compact Design – Only 29mm in diameter, making it easy to install in space-constrained systems.
4. Manual Focus & Iris Locks – Enables precise adjustments for both focus and iris settings, with secure locking for stable operation.
5. Anti-Vibration and Anti-Shock – Enhanced mechanical structure to withstand vibrations and shocks up to 10G, ensuring stable imaging performance.
6. Wide Operating Temperature Range – Functions reliably in environments between -20°C to +60°C.
7. Compatible with Visible Light – Optimized for visible light wavelengths, enhancing versatility in various lighting conditions.

Applications:

• Production Equipment
• Circuit Board Inspection
• Test Equipment
• Engineering Machinery
• Surveillance Systems
• Traffic Monitoring
• Railroad Monitoring
• Social Infrastructure Inspection
