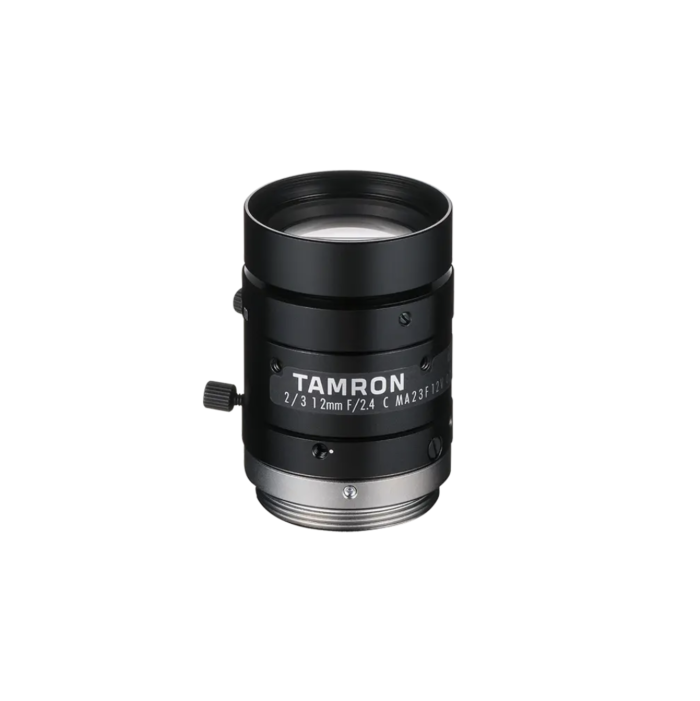

Tamron MA23F12V 8MP 2/3" Compact Fixed-Focal Lens

Tamron MA23F12V 8MP Compact Fixed-Focal Lens: Features and Applications

The Tamron MA23F12V lens is a cutting-edge solution designed for high-performance in industrial and machine vision applications. This lens is tailored for 2/3” image sensors and supports up to 8 Megapixels with a pixel pitch of 2.74µm. Its various focal lengths—ranging from 8mm to 50mm—offer versatility for a broad spectrum of imaging tasks, from close-up inspections to broader field applications.

A standout feature of the MA23F12V is its impressive resolution and contrast, setting a new standard in the industry. Compared to previous models, it delivers superior image clarity and reduced TV distortion, ensuring high-quality performance across the entire image field. The lens’s new optical design enhances resolution and contrast, even at close-up distances, making it ideal for detailed inspections.

Built with a robust mechanical design, the MA23F12V excels in environments prone to vibrations and shocks, with anti-vibration and anti-shock capabilities limiting optical deflection to less than 10 microns even under extreme conditions. This durability is complemented by its compact 29mm diameter, allowing it to fit seamlessly into various setups.

Applications benefiting from the Tamron MA23F12V include production equipment, circuit board mounting systems, traffic monitoring, and surveillance. Its precision and reliability make it an excellent choice for industries requiring high accuracy and durability in demanding environments.

Features:

• High Resolution and Contrast: Compatible with 2/3" imagers, supporting up to 8 Megapixels and 2.74µm pixel pitch. Delivers exceptional image clarity and contrast.
• Low Distortion: State-of-the-art optics technology significantly reduces TV distortion. Models range from -0.6% to 0.04% distortion.
• High-Quality Performance at Close-up Distances: Ensures high contrast and resolution even at common close-up distances.
• Rigorous Image Quality Inspection: Comprehensive testing guarantees consistent high contrast and resolution without peripheral blurring.
• Robust Anti-Vibration and Anti-Shock Design: Enhanced to withstand severe vibrations and shocks, limiting optical deflection to less than 10 microns.
• Compact Size with Rugged Build: With a diameter of only 29mm, it offers a small footprint and rugged durability. Includes a standard setscrew for a more compact installation.

Applications:

• Production Equipment: Ideal for detailed inspections and monitoring in manufacturing environments.
• Circuit Board Mounting Equipment: Provides high-resolution imaging necessary for circuit board inspection.
• Traffic Monitoring: Suitable for capturing detailed images in traffic monitoring systems.
• Surveillance: Effective for high-contrast and high-resolution surveillance applications.
• Railroad System Monitoring: Useful for inspecting and monitoring railroad systems.
• Social Infrastructure: Enhances monitoring and inspection in various infrastructure projects.
• Engineering Machines: Perfect for precision tasks in various engineering machines and equipment.
