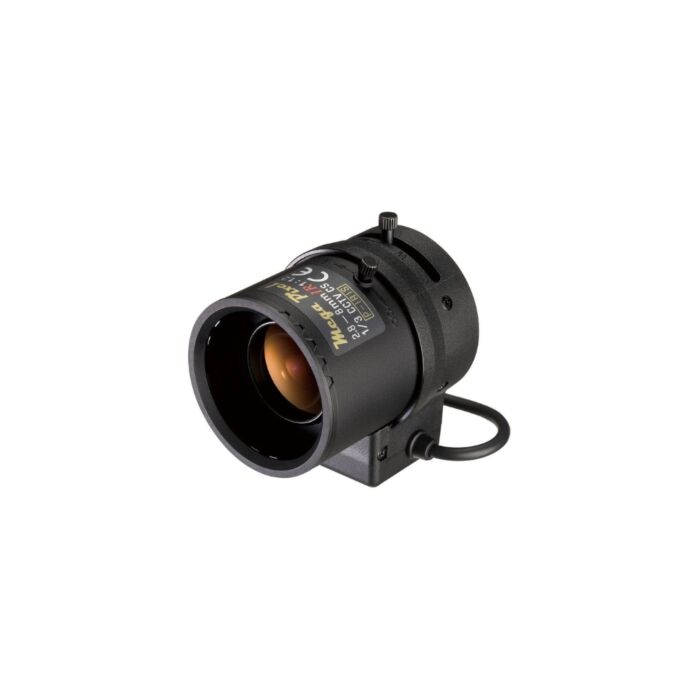

Tamron M13VP288IR 1/3" Aspherical IR Mega Pixel Vari-Focal Lens
Tamron M13VP288IR Vari-Focal Lens for Industrial and Machine Vision Applications
The Tamron M13VP288IR is a cutting-edge 1/3" aspherical infrared vari-focal lens specifically designed for high-performance industrial and machine vision applications. With a focal length range of 2.8 to 8 mm and an impressive maximum aperture of f/1.2, this lens enables exceptional low-light performance, making it ideal for environments where lighting conditions may be challenging.
Tailored for use with 3MP cameras that support a 1/3” image sensor, the M13VP288IR boasts a horizontal angle of view of 100.1° at its widest, providing comprehensive coverage for various monitoring and inspection tasks. The lens's P-Iris technology ensures precise control over the iris opening, enhancing depth of field and optimizing image quality across different focal lengths.
Engineered for durability, the lens operates effectively within a temperature range of -20℃ to +60℃, making it suitable for both indoor and outdoor applications, from surveillance systems to factory automation. With a lightweight design (weighing only 68g) and robust performance characteristics, the Tamron M13VP288IR lens represents a reliable choice for professionals seeking enhanced optical capabilities in industrial settings. Whether for quality control, security, or automated inspection, this lens meets the demands of today's advanced imaging requirements.
Features:
- Focal Length: 2.8 to 8 mm, providing flexibility for various applications.
- Aperture Range: f/1.2 - Close, ensuring excellent low-light performance.
- Angle of View: Wide horizontal angle of 100.1° and telephoto angle of 35.8° for comprehensive coverage.
- Focus Range: 0.3 m to infinity, ideal for diverse imaging needs.
- Mount Type: CS mount compatible with 1/3” image sensors.
- Iris Control: P-Iris technology for precise control of the iris opening.
- Operating Voltage: 3V to 5V for versatile integration.
- Durability: Operating temperature range of -20℃ to +60℃, suitable for various environments.
- Weight: Lightweight design at 68g, facilitating easy installation.
Applications:
- Surveillance Systems: Enhanced monitoring in security applications.
- Factory Automation: Ideal for automated inspection and quality control.
- Robotics: Used in robotic vision systems for accurate navigation and task execution.
- Agricultural Monitoring: Helps in assessing crop health and monitoring agricultural processes.
| Imager Size | 1/2.7" |
| Mount | CS |
| Focal Length | 2.8 to 8 mm |
| Aperture Range | F/1.2 - Close |
| Angle of View (1/2.7") | Wide 124.3° x 65.2°, Tele 43° x 24.2° |
| Angle of View (1/3") | Wide 100.1° x 72.9°, Tele 35.8° x 26.8° |
| Angle of View (1/4") | Wide 72.9° x 53.9°, Tele 26.8° x 20.1° |
| Focus Range | 0.3m to infinity |
| Focus | With manual lock |
| Zoom | With manual lock |
| Iris | P-IRIS (stepping motor control) |
| Excitation | Bipolar drive system |
| Back Focus | Wide: 8.339mm (in air), Tele: 14.944mm (in air) |
| Compatible Wavelengths | Visible light to near infrared range |
| Operating Voltage | 3V to 5V |
| Weight | 68g ± 4g |
| Operating Temperature Range | -20℃ to +60℃ |
