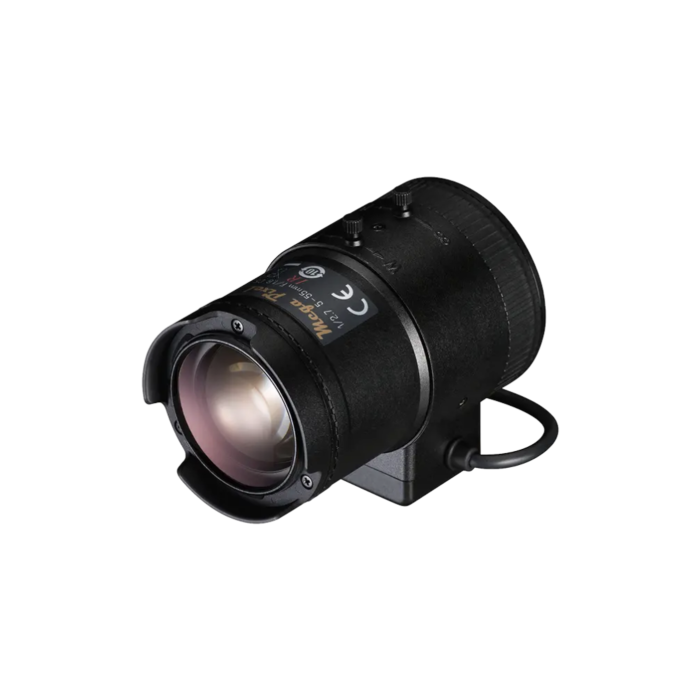

Tamron M13VG555IR 1/3" Aspherical IR Mega Pixel Vari-Focal Lens

Tamron M13VG555IR: High-Performance Vari-Focal Lens for Machine Vision Applications

Aegis Electronic Group Inc. proudly presents the Tamron M13VG555IR, a state-of-the-art 1/3" aspherical IR mega pixel vari-focal lens designed for advanced industrial and machine vision applications. With a focal length ranging from 5mm to 55mm, this lens offers exceptional versatility, making it suitable for a variety of scenarios, from wide-angle surveillance to close-up inspection tasks. The lens is optimized for use with CS-mount 3MP cameras featuring 1/2.7" sensors, ensuring compatibility and high-resolution imaging.

The aperture range of F/1.6 to F/360 allows for optimal light capture across diverse conditions, including both visible light and near-infrared wavelengths. This feature is particularly advantageous in environments with varying lighting conditions. Its manual focus and zoom locks provide users with precise control, enabling detailed inspections in industrial settings.

With an operating temperature range of -20℃ to +60℃, the Tamron M13VG555IR is engineered for reliability in demanding environments. Applications such as automated inspection systems, quality control processes, and robotics greatly benefit from the lens's optical performance, making it an essential component for professionals in the industrial sector seeking quality and durability in machine vision systems.

Features:

• Focal Length: 5mm to 55mm for versatile applications.
• Aperture Range: F/1.6 to F/360, enabling optimal light capture.
• Imager Size: Compatible with 1/3" sensors, optimized for CS-mount 3MP cameras.
• Angle of View:
  • 1/2.7": Wide 61.3° x 35.6°, Tele 6.0° x 3.5°
  • 1/3": Wide 56.2° x 32.4°, Tele 5.5° x 3.2°.
• Focus Range: 2m to infinity for flexible focusing needs.
• Control Mechanism: Manual focus and zoom with locking features for precision.
• Iris: DC Auto Iris for automatic light adjustment.
• Back Focus: 7.69mm (in air) for improved compatibility.
• Operating Voltage: OPEN: 4.0V, CLOSE: 0.5V.
• Mass: 109.6g ± 5g, lightweight for easy integration.
• Operating Temperature Range: -20℃ to +60℃, ensuring reliability in diverse environments.
• Compatible Wavelengths: Effective in the visible light range to near infrared.

Applications:

• Automated Inspection Systems: For quality control in manufacturing processes.
• Surveillance Systems: Providing high-resolution imaging for security purposes.
• Robotic Vision: Enhancing the capabilities of robotic systems in industrial automation.
• Medical Imaging: Used in applications requiring precise imaging for diagnostics.
• Research and Development: Ideal for scientific applications where detailed imaging is crucial.
