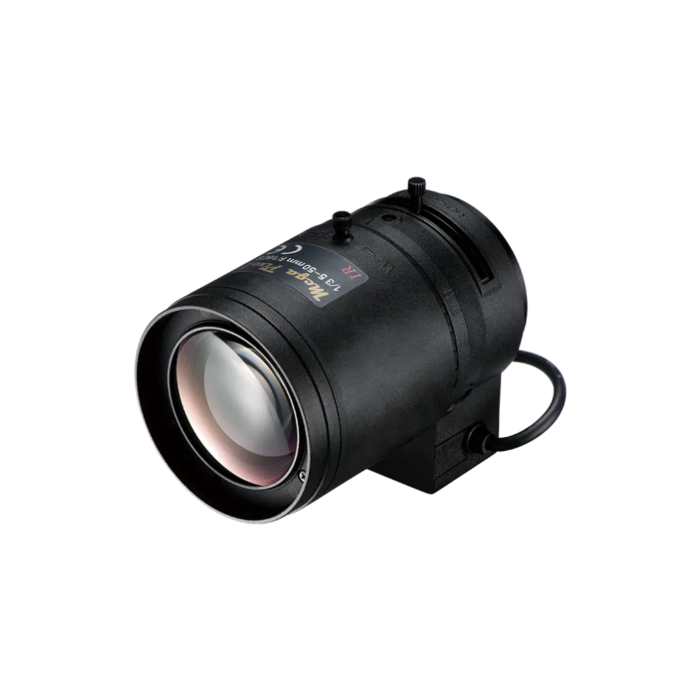

Tamron M13VG550IR 1/3" Aspherical IR Mega Pixel Vari-Focal Lens

Tamron M13VG550IR Lens: High-Performance Solution for Industrial Machine Vision

Tamron is a well-respected brand in the optics industry, known for its precision engineering and innovative lens technology. The Tamron M13VG550IR 1/3" Aspherical IR Mega Pixel Vari-Focal Lens is a high-performance solution designed specifically for industrial and machine vision applications. This lens delivers exceptional image quality, featuring a wide focal length range of 5 to 50mm and an aperture range of F/1.6 to 360, making it ideal for capturing crisp and clear images in various lighting conditions. The ability to support both visible light and near-infrared wavelengths makes it versatile for a range of environments.

This lens is equipped with DC Auto Iris, allowing for automatic adjustment to changing light levels, and manual zoom and focus locks for precision adjustments. The CS-Mount makes it easy to integrate into most industrial camera systems. The compact design and durable construction, with an operating temperature range of -20°C to +60°C, ensure reliable performance even in demanding environments.

Applications such as surveillance, inspection systems, and automated imaging benefit greatly from its 5-megapixel resolution, which ensures sharp and accurate details, whether used for machine vision or security systems. The Tamron M13VG550IR is the perfect lens for precision-driven industries requiring high-quality imaging solutions.

Features:

• Focal Length: 5 to 50 mm, allowing for versatile imaging options.
• Aperture Range: F/1.6 to F/360, ensuring excellent light sensitivity for various applications.
• Angle of View:
  • 1/3" Wide: 53° x 40°, Tele: 5.6° x 4.2°
  • 1/4" Wide: 40° x 30°, Tele: 4.2° x 3.2°
• Focus Range: From 1 meter to infinity for flexible application needs.
• Iris Type: DC Auto Iris for automatic exposure adjustments.
• Mount Type: CS-Mount for compatibility with most industrial cameras.
• Weight: 104g, ensuring a lightweight design for easy integration.
• Operating Temperature Range: -20℃ to +60℃, suitable for diverse environments.
• Back Focus: Wide: 13.71mm, Tele: 17.87mm for precise positioning.

Applications:

• Machine Vision Systems: For precise inspection and quality control in manufacturing.
• Surveillance and Security: Ideal for high-resolution monitoring in security systems.
• Automated Imaging: Beneficial in robotics and automated inspection setups.
• Medical Imaging: Suitable for non-invasive imaging applications in medical devices.
• Transportation Monitoring: Effective in capturing detailed images for traffic analysis.
