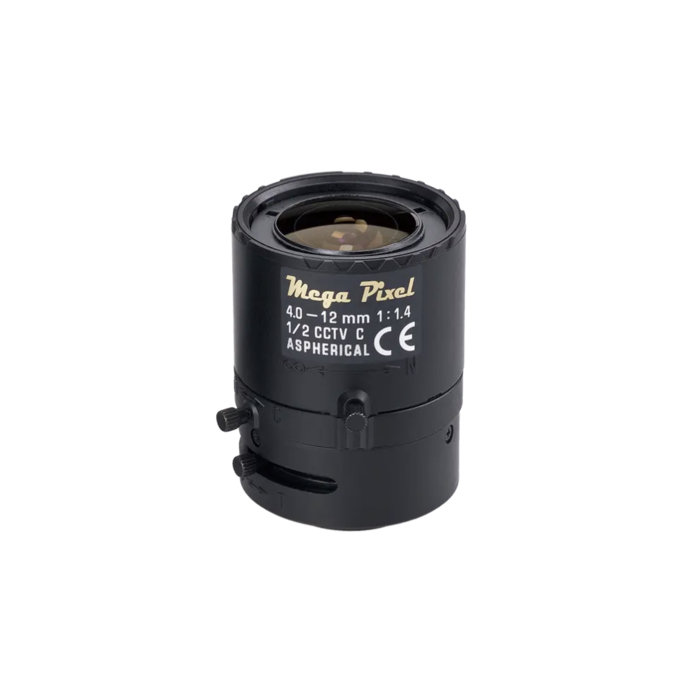

Tamron M12VM412 1/2" Aspherical Mega Pixel Vari-Focal Lens

Enhance Your Industrial and Machine Vision Solutions with the Tamron M12VM412 Vari-Focal Lens

The Tamron M12VM412 1/2" Aspherical Mega Pixel Vari-Focal Lens, available through Aegis Electronic Group Inc., is a top-tier choice for industrial and machine vision applications. Designed to accommodate a 1/2" imager size, this lens offers a versatile focal length ranging from 4.0 to 12mm, ensuring exceptional adaptability for various imaging needs. With an impressive aperture range of F/1.4 to close, users can achieve high-quality images even in low-light conditions.

This lens features a wide angle of view, measuring 93.9° x 68.8° in wide mode, making it perfect for capturing expansive scenes. Its focus range extends from 0.3m to infinity, providing flexibility for close-up or distant objects. Built for robustness, the lens operates effectively in temperatures from -20℃ to +60℃, making it suitable for diverse industrial environments.

The manual lock for focus, zoom, and iris adjustments offers precise control over image quality, essential for applications in quality inspection, automated monitoring, and robotics. By integrating the Tamron M12VM412 lens into your machine vision systems, you can enhance accuracy and efficiency, ensuring optimal performance in demanding industrial settings. Choose Aegis Electronic Group for reliable and innovative optical solutions.

Features:

• Imager Size: 1/2"
• Mount Type: C mount
• Focal Length: 4.0 to 12mm
• Aperture Range: F/1.4 to close
• Angle of View:
  • Wide (1/2"): 93.9° x 68.8°
  • Tele (1/2"): 31.4° x 23.6°
  • Wide (1/3"): 68.8° x 51.0°
  • Tele (1/3"): 23.6° x 17.7°
• Focus Range: 0.3m to infinity
• Adjustments: Manual lock for focus, zoom, and iris
• Back Focus:
  • Wide: 9.05mm (in air)
  • Tele: 18.90mm (in air)
• Compatible Wavelengths: Visible light range
• Operating Temperature Range: -20℃ to +60℃
• Weight: 58g ± 5g

Applications:

• Quality Inspection: High-resolution imaging for defect detection in manufacturing processes.
• Automated Monitoring: Surveillance systems where accurate image capture is crucial.
• Robotics: Enhanced vision for robotic systems performing complex tasks.
• Traffic and Security: Effective for license plate recognition and surveillance in security applications.
• Medical Imaging: Suitable for applications requiring precise imaging in clinical environments.
