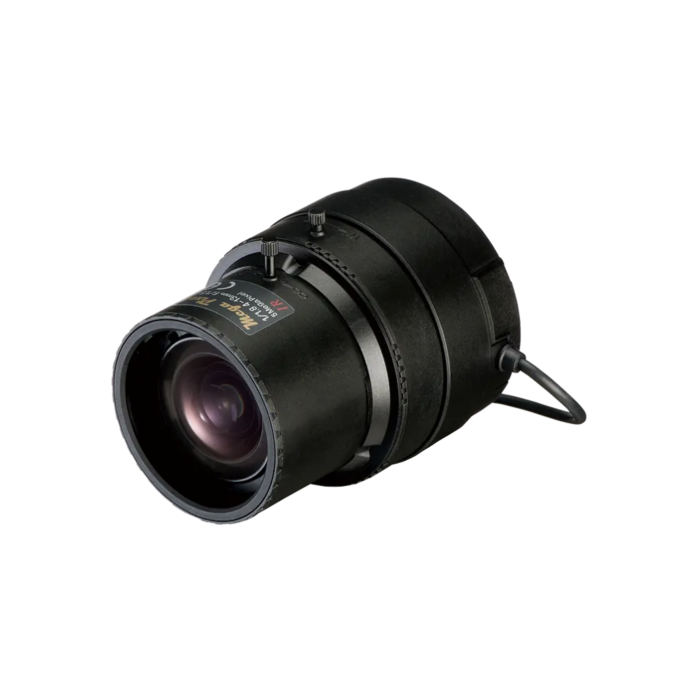

Tamron M118VP413IRCS 1/1.8" Aspherical Mega Pixel Vari-Focal Lens

Tamron M118VP413IRCS: High-Performance Vari-Focal Lens for Industrial Machine Vision

Aegis Electronic Group Inc. proudly offers the Tamron M118VP413IRCS, a high-performance 5 Mega-Pixel Vari-Focal Lens designed to meet the demands of industrial and machine vision applications. Featuring a focal length range of 4.0 - 13mm and F/1.5 aperture, this lens delivers exceptional brightness and image clarity, even in low-light conditions, thanks to its infrared-corrected lens elements. Its CS-Mount makes it highly versatile for use with a wide range of cameras, while the P-IRIS control ensures optimal exposure and sharpness.

The M118VP413IRCS is specially designed for 24-hour operation, with no focus shift between day and infrared light. This makes it ideal for systems requiring consistent imaging across different lighting conditions, including security surveillance, quality inspection, and automated industrial processes. With 4K resolution readiness and 5MP clarity, this lens excels in delivering high-resolution images for precision-oriented tasks. Its manual zoom and focus lock provide precise control, and its wide-angle and telephoto views ensure comprehensive coverage for both close and distant targets.

For customers in the industrial and machine vision fields, the Tamron M118VP413IRCS is an indispensable asset for any application requiring consistent, high-quality imaging in challenging environments.

Features:

• Imager Size: 1/1.8"
• Mount Type: CS
• Focal Length: 4.0 - 13mm
• Aperture Range: F/1.5 - Close
• Angle of View:
  • 1/1.8" Wide: 105.4° x 77.6°
  • 1/1.8" Tele: 33.0° x 24.8°
  • 1/2" Wide: 91.7° x 67.9°
  • 1/2" Tele: 29.0° x 21.8°
  • 1/3" Wide: 67.9° x 50.6°
  • 1/3" Tele: 21.8° x 16.3°
• Focusing Range: 0.3m - ∞
• Operation:
  • Focus: Manual with lock
  • Zoom: Manual with lock
  • Iris: P-IRIS (stepping motor switching control)
• Excitation: Bi-Polar Type
• Back Focal Distance: 15.235mm (in air)
• Wave Length: Visible Light - Near Infrared
• Operating Voltage: 3V - 5V
• Weight: 172g ± 5g
• Operating Temperature: -20°C - +60°C

Applications:

• Security Surveillance: Provides high-quality imaging for security systems operating 24/7.
• Quality Inspection: Ensures precision and accuracy in automated inspection processes.
• Robotics and Automation: Enhances machine vision systems in robotics for object detection and recognition.
• Traffic Monitoring: Ideal for capturing clear images for traffic analysis and monitoring.
• Remote Sensing: Effective in applications that require accurate imaging in varying light conditions.
