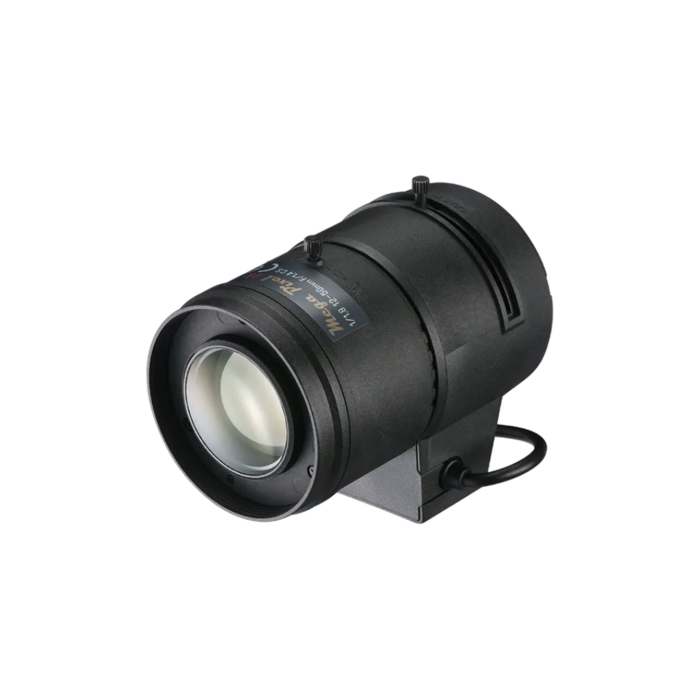

Tamron M118VG1250IR 5MP Near IR Corrected Lens
Tamron M118VG1250IR 5MP Near IR Corrected Lens for Industrial Applications
Aegis Electronic Group Inc. offers the Tamron M118VG1250IR, a versatile 5MP Near Infrared (IR) corrected lens designed for high-performance industrial and machine vision applications. Engineered for 24-hour operation, this CS-mount lens delivers outstanding image quality in both visible light and near infrared (IR) wavelengths, making it ideal for environments where lighting conditions fluctuate.
With a focal length range of 12 to 50 mm and an aperture range of F/1.4 to F/360, this lens provides superior clarity and brightness, even in low light. The manual lock for focus and zoom ensures consistent performance, while the DC Auto Iris allows for automatic adjustment in changing light conditions. What sets this lens apart is its no focus shift between day and IR light, ensuring seamless transitions for applications that require around-the-clock accuracy, such as surveillance systems, quality control inspections, and automated vision systems.
The lens supports up to 4K resolution, making it suitable for cutting-edge imaging systems that demand high resolution. It performs optimally in temperatures ranging from -20°C to +60°C, making it perfect for both indoor and outdoor environments. From industrial automation to security, the M118VG1250IR provides a reliable, high-quality imaging solution.
Features:
- 5MP resolution, optimized for industrial and machine vision applications.
- Focal length of 12-50 mm, providing flexibility from wide to telephoto.
- Aperture range of F/1.4 to F/360, allowing for optimal brightness even in low-light environments.
- Near IR correction, ensuring no focus shift between visible and IR light.
- CS-mount compatible with a wide range of industrial cameras.
- DC Auto Iris for automatic light adjustment.
- Ready for 4K resolution, delivering superior image quality.
- Manual focus and zoom locks to ensure stability in long-term use.
- Operates in a temperature range from -20°C to +60°C for rugged environments.
Applications:
- Machine Vision Systems
- Surveillance and Security Cameras
- Quality Control and Inspection
- Automated Vision Systems
- Outdoor Imaging with fluctuating lighting conditions
- Industrial Automation
| Imager Size | 1/1.8" |
| Mount | CS |
| Focal Length (mm) | 12-50mm |
| Aperture Range | F1.4 - 360 |
| Angle of View (horizontal x vertical) | 1/1.8" - Wide: 34.0° x 25.5° Tele: 8.5° x 6.4° 1/2" - Wide: 29.9° x 22.4° Tele: 7.5° x 5.6° 1/3" - Wide: 22.4° x 16.8° Tele: 5.6° x 4.2° |
| Focus Range | 1.0m to infinity |
| Access | Focus - With Manual Lock Zoom - With Manual Lock Iris - DC Auto Iris |
| Back focus (in air) | 9.62mm (in air) |
| Compatible Wavelengths | Visible light range to near infrared range |
| Operating voltage | OPEN: 4V CLOSE: 0.5V |
| Mass. | 130g |
| Operating Temperature | -20° ~ +60° C |
