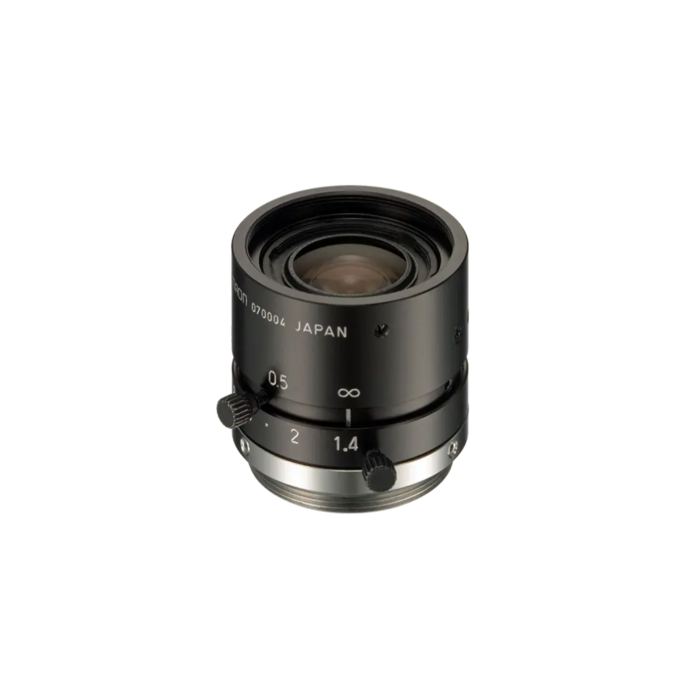

Tamron M118FM08 1/1.8" Mega Pixel Mono-Focal Lens

High-Performance Tamron M118FM08 Mega Pixel Lens for Industrial Applications

The Tamron M118FM08 1/1.8" Mega Pixel Mono-Focal Lens stands out as an essential component for professionals in the Industrial and Machine Vision sectors. Designed specifically for high-resolution image processing, this 8mm lens is optimized for various imager sizes including 1/1.8", 1/2", and 1/3", making it a versatile solution for different camera systems. With an aperture range from F/1.4 to F/16, it offers impressive depth of field control and adaptability to diverse lighting conditions, essential for factory automation (FA) tasks.

With a horizontal angle of view of 50.8° and a vertical angle of 38.6°, the Tamron lens enables wide coverage, allowing users to capture detailed images across expansive areas. The lens features a manual focus and iris, providing operators with precise control over image quality, while its compact weight of just 44g makes it a practical choice for various applications.

The Tamron M118FM08 is particularly beneficial in settings such as quality inspection, object detection, and robotics, where clarity and accuracy are paramount. Its operational temperature range of -10℃ to +60℃ further ensures reliability in industrial environments, empowering businesses to enhance efficiency and productivity in their machine vision applications.

Features:

• Imager Size: Supports 1/1.8", 1/2", and 1/3" image processing cameras
• Focal Length: 8mm for versatile viewing
• Aperture Range: F/1.4 to F/16 for excellent low-light performance
• Angle of View: 50.8° x 38.6° for expansive coverage
• Focus Range: 0.1m to infinity for close-up and distant imaging
• Iris Control: Manual iris with lock for precise adjustments
• Mount Type: C-Mount for compatibility with various systems
• Filter Thread Diameter: M25.5 P=0.5mm for additional filtration options
• Distortion: Within -2.0% for clear, undistorted images
• Weight: Lightweight at 44g for easy integration
• Operating Temperature Range: -10℃ to +60℃ for reliable performance in various environments

Applications:

• Factory Automation: Enhances monitoring and control of automated systems.
• Quality Inspection: Facilitates detailed examination of products for defects.
• Robotics: Supports vision systems in robotic applications for improved precision.
• Object Detection: Assists in identifying and tracking objects in real-time.
