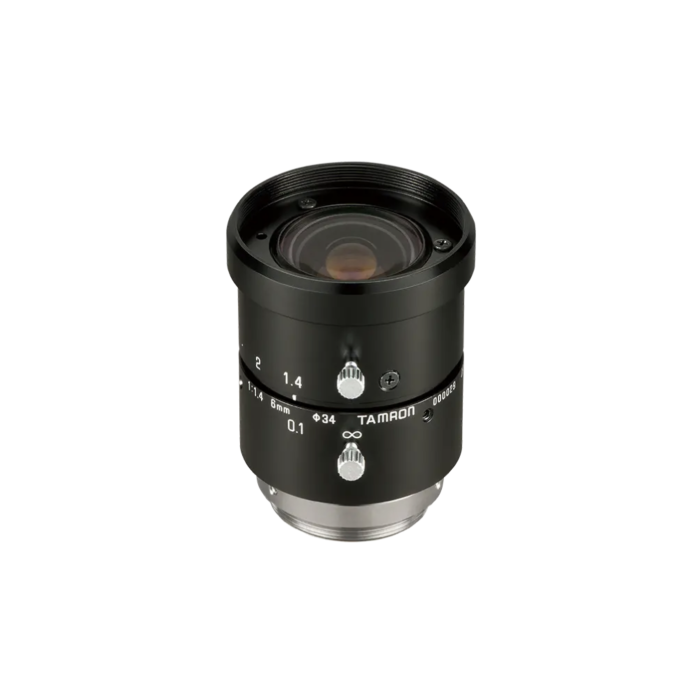

Tamron M118FM06 1/1.8" Mega Pixel Mono-Focal Lens

Tamron M118FM06 1/1.8" Mega Pixel C-Mount Lens for Industrial & Machine Vision Applications

The Tamron M118FM06 is a high-performance, high-resolution C-mount lens that is ideal for industrial and machine vision applications. With a 1/1.8" imager format and a 6mm focal length, this mono-focal lens offers exceptional optical clarity and precision, delivering superior image quality in a variety of environments. The aperture range from f/1.4 to f/16 provides flexibility in different lighting conditions, ensuring sharp, well-exposed images in any setting. It features manual focus and iris locking screws, offering stability and consistency, which are critical in industrial setups that require long-term precision.

With a wide-angle view (66.1° x 50.8° for 1/1.8"), this lens is perfect for close-range machine vision applications, such as automated inspection systems, robotics, and quality control. Its minimum object distance of 100mm allows for detailed imaging even at short distances, making it highly versatile for factory automation, 3D scanning, and security systems. The Tamron M118FM06 is designed to operate in challenging industrial environments with its robust temperature range of -10°C to +60°C, ensuring reliable performance across various conditions. Aegis Electronic Group Inc. is proud to offer this advanced lens for industries that require precise, high-quality vision solutions.

Features:

• Imager Size: 1/1.8"
• Focal Length: 6mm
• Aperture Range: f/1.4 to f/16
• Angle of View: 66.1° x 50.8° (1/1.8"), 58.9° x 44.9° (1/2"), 44.9° x 34.0° (1/3")
• Focus Range: 0.1m to infinity
• Manual Focus Lock & Iris Lock
• Filter Thread Diameter: M34 P=0.5mm
• Distortion: Within -3.0%
• Compatible Wavelengths: Visible light spectrum
• Operating Temperature: -10°C to +60°C
• Weight: 86g

Applications:

• Machine Vision Systems: Ensures high precision and accuracy in automated quality inspection.
• Factory Automation: Offers reliable performance in challenging industrial environments.
• Robotics: Provides clear, high-resolution imaging for enhanced robotic navigation and control.
• Surveillance Systems: Suitable for security and surveillance applications due to its wide-angle view and clarity.
• 3D Scanning & Imaging: Delivers accurate results for detailed, close-range 3D scanning projects.
