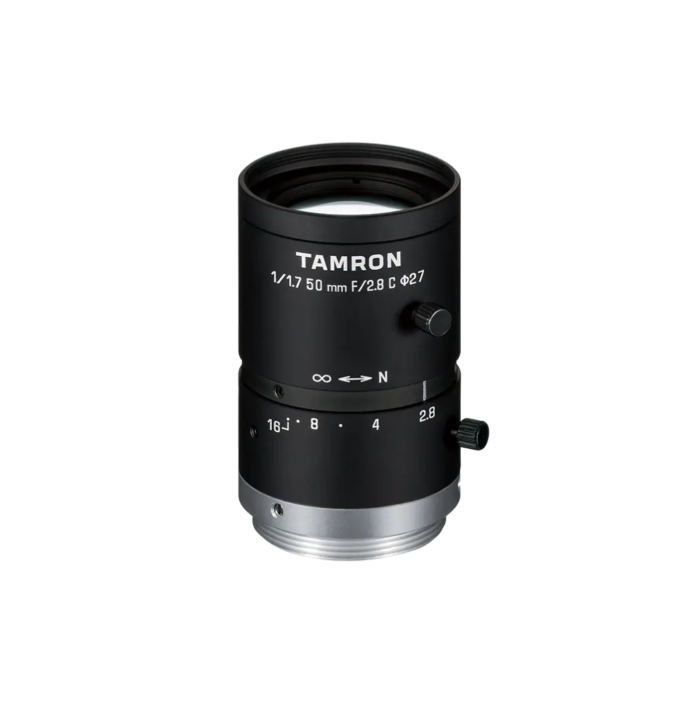

Tamron M117FM50 1/1.7" 6MP Mono-Focal Lens
Tamron M117FM50 6MP Mono-Focal Lens for Machine Vision Applications
Tamron, a renowned leader in precision optics, brings advanced imaging solutions to the industrial and machine vision market with its M117FM50 50mm mono-focal lens. Designed for compatibility with 1/1.7” sensors and supporting up to 6MP resolution, this lens delivers exceptional high-contrast, low-distortion performance, making it ideal for applications that require detailed image clarity and precision. The M117FM50 excels in environments such as production lines, printed circuit board mounting, and machine tools where accurate imaging is critical.
This lens features a manual focus and iris control with a locking mechanism for reliable, repeatable adjustments. Its wide aperture range (F/2.8 to F/16) and focus range from 0.2m to infinity make it versatile for both close-up and distance shots. With a compact 29mm outer diameter and robust anti-vibration and anti-shock design, this lens performs reliably in high-stress industrial environments, maintaining optical fidelity even under extreme conditions.
Customers in sectors like automation, quality control, and testing benefit from the Tamron M117FM50’s unmatched resolution, ensuring crisp imaging for high-speed operations and enhanced productivity. Its precision optics and durable design make it a go-to solution for high-performance machine vision applications.
Features:
- High-Resolution Performance: Supports up to 6MP, ensuring detailed and precise imaging.
- Low Distortion: Minimal distortion (-0.01%) for accurate image reproduction.
- Wide Aperture Range: F/2.8 to F/16 for flexible lighting conditions.
- Compact Design: Outer diameter of 29mm, ideal for tight installation spaces.
- Anti-Vibration/Anti-Shock: Designed to perform under vibration and shock conditions (up to 10G).
- Manual Locking Focus & Iris: Offers secure settings for consistent imaging results.
Applications:
- Machine Vision: Ideal for quality control and automated inspection.
- PCB Mounting: Ensures precise imaging in printed circuit board processes.
- Testing Equipment: Accurate imaging in testing and measurement tools.
- Factory Automation: Enhanced imaging for production lines and machinery.
| Imager Size | 1/1.7" |
| Mount | C |
| Focal Length | 50mm |
| Aperture Range | F/2.8 to F/16 |
| Angle of View (1/1.7") | 8.9° x 6.7° |
| Angle of View (1/1.8") | 8.7° x 5.9° |
| Angle of View (1/2") | 7.5° x 5.7° |
| Angle of View (1/3") | 5.7° x 4.3° |
| Focus Range | 0.2m to ∞ (Recommended 0.3m) |
| Focus | Manual lock |
| Iris | Manual lock |
| Filter Thread Diameter | M27 P=0.5mm |
| Compatible Wavelengths | Visible light range |
| Distortion | -0.01% |
| Weight | 60g |
| Operating Temperature Range | -20℃ to +60℃ |
