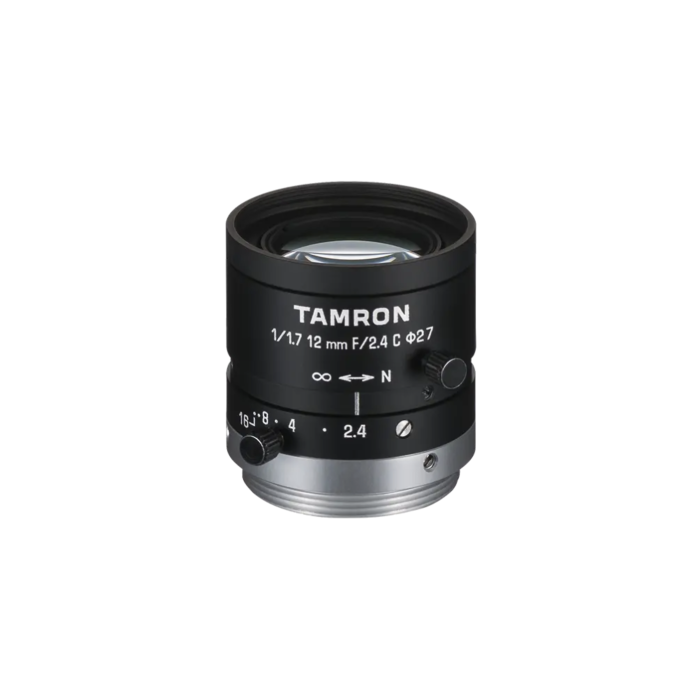

Tamron M117FM12 1/1.7" 6MP Mono-Focal Lens
Tamron M117FM12 1/1.7" 6MP Mono-Focal Lens for Machine Vision Applications
Aegis Electronic Group Inc. offers Tamron’s M117FM12, a 12mm focal length, high-resolution mono-focal lens designed for machine vision and industrial applications. The lens is compatible with 1/1.7" imagers, supporting up to 6 megapixels for high-contrast, sharp imaging across all shooting distances. It excels in close-up applications, such as printed circuit board (PCB) inspection, production equipment, and automated test systems, making it ideal for industries that demand precision and clarity.
With an aperture range of F/2.4 to F/16 and a manual focus/iris lock, the M117FM12 allows users to precisely control image quality. The lens features industry-leading low distortion (-1.02%) and is equipped with Tamron’s state-of-the-art anti-vibration and anti-shock mechanisms, making it highly reliable in harsh environments with vibrations up to 10G.
The compact design (outer diameter of 29mm) allows easy integration into tight machine setups without sacrificing performance. Tamron's rigorous quality assurance ensures consistent high-resolution imaging from the center to the periphery of the lens, making it a perfect choice for manufacturers looking to enhance the performance of their vision systems.
| Imager Size | 1/1.7" |
| Mount Type | C |
| Focal Length | 12mm |
| Aperture Range | F/2.4 - F/16 |
| Field of View Angle (1/1.7") | 34.3° x 25.9° |
| Field of View Angle (1/1.8") | 33.7° x 22.9° |
| Field of View Angle (1/2") | 29.3° x 22.1° |
| Field of View Angle (1/3") | 22.1° x 16.6° |
| Focus Range | 0.1m - ∞ (Recommended Shooting Distance: 0.3m) |
| Operation - Focus | Manual w/lock |
| Operation - Iris | Manual w/lock |
| Filter Size | M34 P=0.5 |
| Wavelength | Visible Light |
| TV Distortion | -1.02% |
| Weight | 50g |
| Operating Temperature | -20°C - +60°C |
