Tamron M112FM75 1/1.2" Super High Resolution Mono-Focal Lens For 5 Mega Pixel Cameras

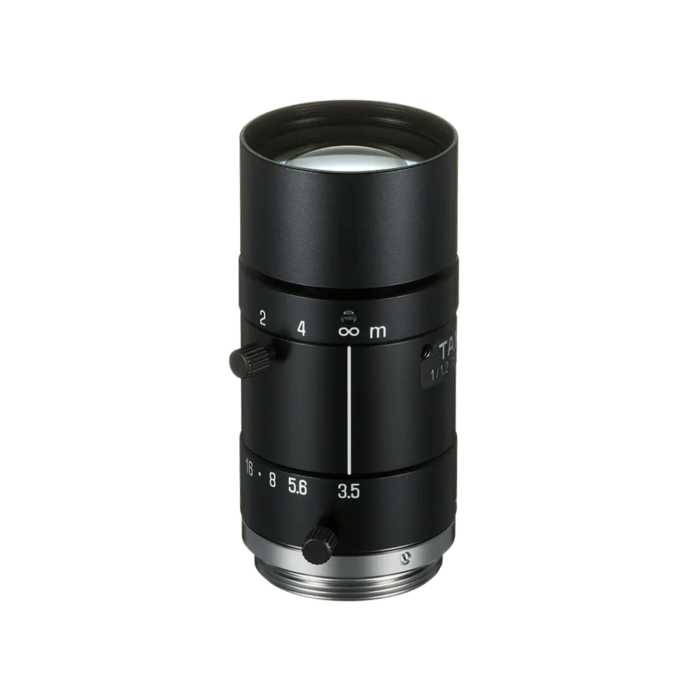

Tamron M112FM75 75mm Super High Resolution Mono-Focal Lens for 5 Megapixel Cameras

Tamron, a trusted name in optics, offers the M112FM75 Super High Resolution Mono-Focal Lens, designed specifically for industrial and machine vision applications. Compatible with 1/1.2" and 2/3" imagers, this lens delivers exceptional performance for 5-megapixel cameras. Its 75mm focal length, coupled with an aperture range of F/3.5 to F/16, allows for optimal light control and image clarity. The M112FM75 lens is engineered with high precision optics and a visible light wavelength, ensuring crisp and detailed image capture, essential in various industrial environments. The manual focus system with increased rotational torque offers smooth adjustments, while the lockable focus and iris mechanisms enhance stability during critical operations. Additionally, this lens features a low TV distortion rate of 0.03%, ensuring accurate reproduction of details, essential in quality control, inspection, robotics, and automation systems.

The robust design, which includes four selectable lock-screw positions, makes installation convenient and secure, even in demanding environments. Operating in a wide temperature range (-20°C to +60°C), this lens is versatile for diverse machine vision tasks, such as automated inspections, product assembly lines, and high-precision measurement systems. Tamron continues to lead the industry by providing innovative solutions for modern industrial imaging needs.

Features:

• 75mm Focal Length: Ideal for capturing detailed images in machine vision systems.
• Aperture Range F/3.5 - F/16: Allows for adaptable light control in various lighting conditions.
• 1/1.2" and 2/3" Sensor Compatibility: Supports 5MP cameras with high pixel pitch, delivering sharp and clear images.
• Manual Focus with Increased Rotational Torque: Provides smooth and precise adjustments, enhancing user control.
• Locking Screws: Four selectable positions for secure installation and stability.
• Low Distortion (0.03%): Minimizes image distortion for accurate visual output.
• Operating Temperature Range (-20°C to +60°C): Built to perform in extreme industrial environments.
• Visible Light Wavelength: Designed for capturing images in the visible light spectrum.

Applications:

• Machine Vision Systems: Used in automated inspection and quality control systems for detecting defects and measuring parts.
• Industrial Automation: Ideal for robotics and automation systems requiring precise visual feedback.
• Product Assembly Line Monitoring: Ensures high precision in monitoring and detecting faults in the assembly process.
• Quality Control and Inspection: Delivers high-resolution images to assess product quality and ensure compliance with standards.
• Robotics Vision: Enables robots to capture and process visual information with high clarity for accurate task performance.
