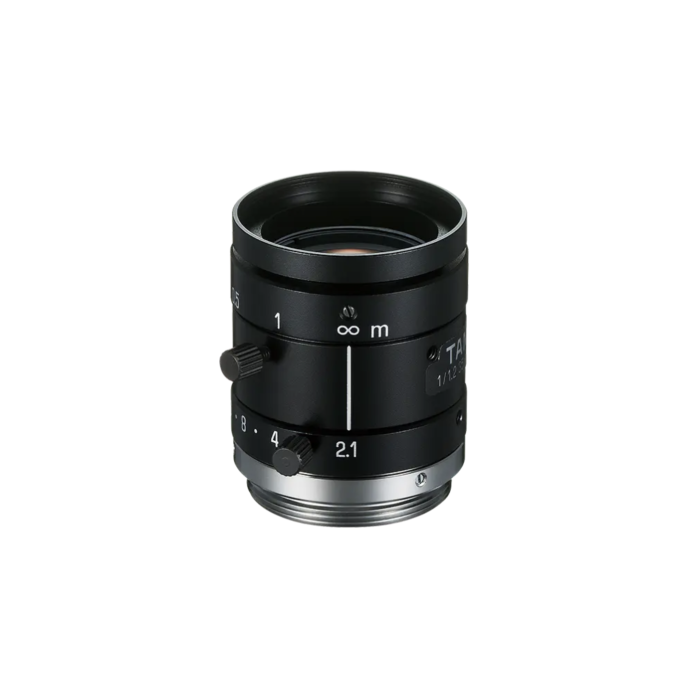

Tamron M112FM35 1/1.2" Super High Resolution Mono-Focal Lens For 5 Mega Pixel Cameras
Tamron M112FM35 35mm Mono-Focal Lens for 5 Megapixel Cameras in Industrial and Machine Vision Applications
The Tamron M112FM35 35mm Mono-Focal Lens is a high-resolution solution designed for demanding industrial and machine vision applications. Engineered to work seamlessly with 5-megapixel cameras, it supports both 1/1.2" and 2/3" imagers, ensuring superior image clarity and sharpness. With a wide aperture range of F/2.1 to F/16, this lens captures precise details in varying light conditions, making it ideal for environments requiring accurate image analysis.
The lens features a manual focus and iris lock, which allows for precise control during operation and ensures stability once adjusted. Its low distortion of just 0.05% guarantees undistorted, high-quality images, vital in industries such as automated inspection, robotics, and security systems. The 35mm focal length combined with a 17.3° horizontal field of view is optimized for capturing fine details in industrial setups.
Tamron, a trusted brand in optics, has designed this lens to be robust and reliable under harsh conditions, with an operating temperature range from -20°C to +60°C. It is lightweight at 57g, and the C-mount configuration ensures compatibility with a wide range of industrial cameras, making it an excellent choice for machine vision, factory automation, and quality control applications.
| Imager Size | 1/1.2" |
| Mount | C |
| Focal length | 35mm |
| Aperture Range | F/2.1 to F/16 |
| Angle of view (1/1.2") | 4:3 (17.3° x 13.1°), 16:9 (18.8° x 10.7°) |
| Angle of view (2/3") | 4:3 (14.3° x 10.7°), 16:9 (15.5° x 8.8°) |
| Focus Range | 0.2m to ∞ (Recommended: 0.3m) |
| How to use - Focus | With manual lock |
| How to use - Iris | With manual lock |
| Filter Thread Diameter | M27 P=0.5mm |
| Compatible Wavelengths | Visible light range |
| Distortion | 0.05% |
| Mass | 57g |
| Operating Temperature Range | -20°C to +60°C |
