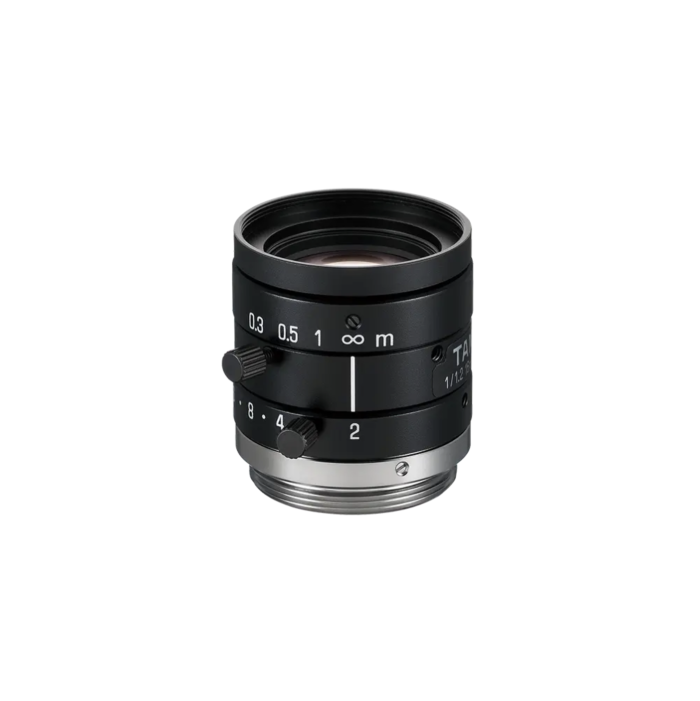

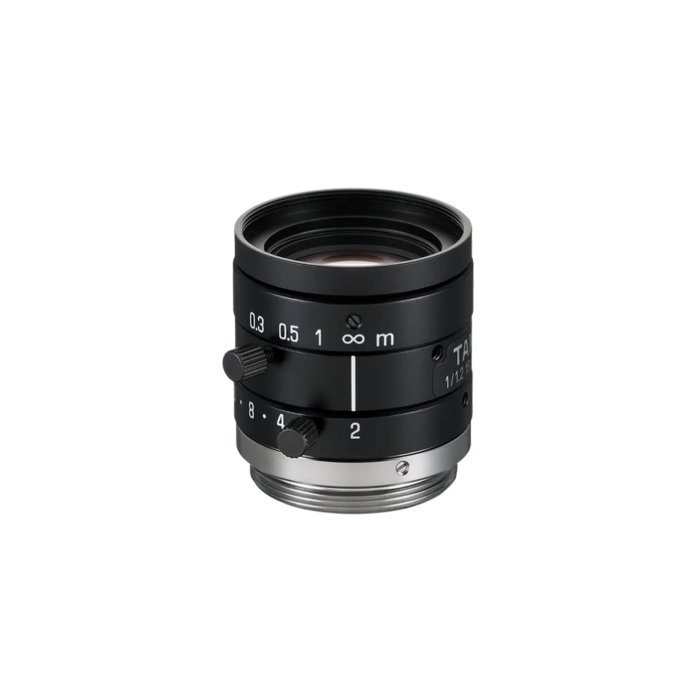

Tamron M112FM16 1/1.2" Super High Resolution Mono-Focal Lens For 5 Mega Pixel Cameras
QUICK OVERVIEW
The Tamron M112FM16 is a high-resolution, 16mm mono-focal lens designed for 5MP cameras. With a 1/1.2" imager size, C-mount, and manual focus and iris control, it offers precise image capture, making it ideal for machine vision, Intelligent Transportation Systems (ITS), and close-focus applications.
- SKU
- M112FM16
Request a Quote
Featuring superior optical technology these various series of fixed-focal lenses provide outstanding optical quality and enhanced performance in close-focus situations. With lenses for image sensors from 1/1.8” over 2/3” and 1/1.2 up to 1.1” and pixels as small as 2.5 µm these lenses fulfill the needs of today’s diverse image processing applications.
In recent years ITS (Intelligent Transport Systems) has been receiving attention worldwide, with rising demand for high sensitivity and high resolution, which results in larger imager size. These lenses contribute especially to license plate recognition or face recognition for ITS applications.
Features:
- Format: 1/1.2"
- Focal Length: 16 mm
- Aperture: F2.0
- Iris: manual
- Mount: C-Mount
| Imager Size | 1/1.2" |
| Mount | C |
| Focal Length | 16mm |
| Aperture Range | F/2.0-16 |
| Field Of View Angle (H/V) | 1/1.2" [4:3] 37.4° x 28.4° [16:9] 40.5° x 22.3° 2/3" [4:3] 31.0° x 23.4° [16:9] 33.7° x 19.2° |
| Focusing Range | 0.1m ~ INF (Recommended Shooting Distance: 0.3m) |
| Focus | With manual lock |
| Iris | With manual lock |
| Filter Size | M27 P=0.5mm |
| Compatible Wavelengths | Visible light range |
| Weight | 51g |
| TV Distortion | -0.56% |
| Weight | 51g |
| Operating Temperature | -20°C ~ +60° C |
