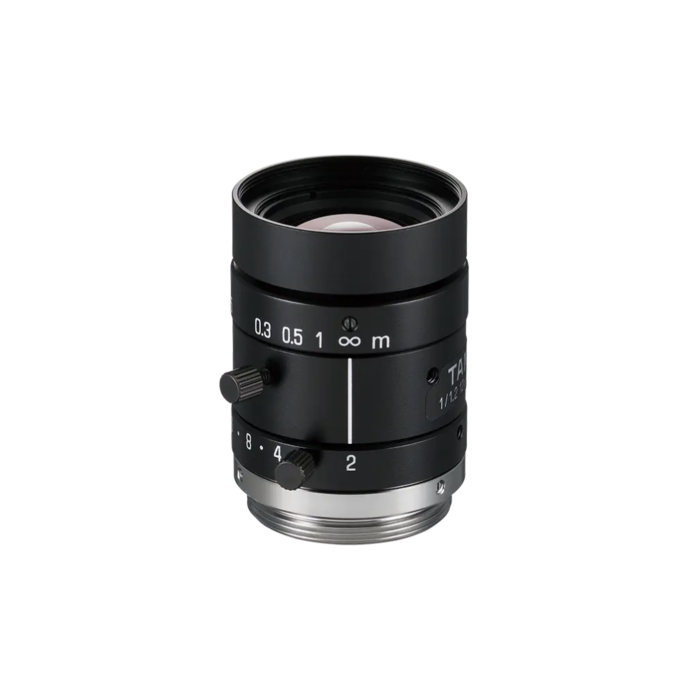

Tamron M112FM12 1/1.2" Super High Resolution Mono-Focal Lens For 5 Mega Pixel Cameras

High-Performance Mono-Focal Lens for Industrial and Machine Vision Applications

The Tamron M112FM12 1/1.2" Super High Resolution Mono-Focal Lens is an exceptional optical solution offered by Aegis Electronic Group Inc., specifically designed for industrial and machine vision applications. This lens boasts a 12mm focal length and an aperture range of F/2.0 to F/16, ensuring outstanding performance in diverse imaging conditions. It is compatible with 5 Mega Pixel cameras, making it ideal for high-resolution applications that require precision and clarity.

Featuring a C-mount, this lens is easy to integrate into various imaging systems. With a focus range extending from 0.1 meters to infinity and a recommended shooting distance of 0.3 meters, the M112FM12 excels in close-focus situations. The lens’s field of view angle of 49.2° x 37.6° (4:3) allows for extensive coverage, perfect for capturing detailed images in challenging environments.

In today's rapidly advancing landscape, where Intelligent Transport Systems (ITS) are gaining prominence, the M112FM12 lens stands out for applications such as license plate and facial recognition. Its superior optical quality, low TV distortion of -0.97%, and robustness across a temperature range of -20°C to +60°C make it a reliable choice for demanding industrial settings. Trust Aegis Electronic Group Inc. to provide the optical excellence your applications require.

Features:

• Format: 1/1.2"
• Focal Length: 12 mm
• Aperture Range: F/2.0 - F/16
• Field of View Angle:
  • (4:3) 49.2° x 37.6°
  • (16:9) 53.2° x 30.6°
• Focus Range: 0.1m - ∞ (Recommended Shooting Distance: 0.3m)
• Operation: Manual focus with lock, Manual iris with lock
• Mount Type: C-Mount
• Filter Size: M27 P=0.5mm
• Wavelength: Visible Light
• TV Distortion: -0.97%
• Weight: 64g
• Operating Temperature: -20°C - +60°C

Applications:

• Intelligent Transport Systems (ITS): Ideal for use in license plate recognition and facial recognition technologies.
• Quality Control: Suitable for inspection systems in manufacturing, ensuring products meet strict quality standards.
• Surveillance: Provides high-resolution imagery for security and monitoring systems.
• Automation: Enhances automation processes by enabling precise imaging in robotic systems.
