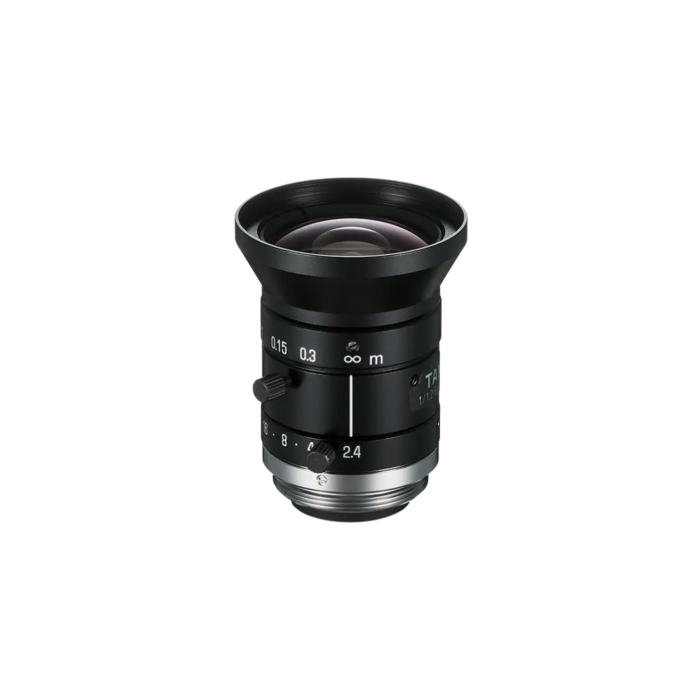

Tamron M112FM08 1/1.2" Super High Resolution Mono-Focal Lens For 5 Mega Pixel Cameras

Tamron M112FM08 1/1.2" Super High Resolution Moni-Focal Lens for Industrial and Machine Vision Applications

The Tamron M112FM08 1/1.2" Super High Resolution Moni-Focal Lens is a cutting-edge optical solution designed specifically for the demands of industrial and machine vision applications. This lens is optimized for 5 Mega Pixel cameras, delivering superior optical quality and precision to meet the challenges of various imaging tasks. With a focal length of 8mm and an aperture range from F/2.4 to F/16, this lens excels in close-focus situations, providing an impressive horizontal angle of view of 70.3° and a vertical angle of 54.9° for 1/1.2" format (4:3).

Its robust construction, featuring a C-mount and manual focus and iris locks, ensures reliable performance in environments with operating temperatures ranging from -20°C to +60°C. The lens has been engineered with a minimal distortion rate of -1.47%, making it particularly suited for applications such as license plate recognition and facial recognition, critical in Intelligent Transport Systems (ITS). These features are pivotal for enhancing image processing tasks in sectors ranging from security to traffic management. By choosing the Tamron M112FM08, customers can significantly enhance their imaging capabilities, driving efficiency and accuracy in their operations.

Features:

• Imager Size: 1/1.2"
• Focal Length: 8mm
• Aperture Range: F/2.4 to F/16
• Angle of View:
  • 1/1.2" (4:3): 70.3° x 54.9°
  • 1/1.2" (16:9): 75.3° x 45.6°
  • 2/3" (4:3): 59.5° x 45.8°
  • 2/3" (16:9): 64.0° x 37.8°
• Focus Range: 0.1m to ∞ (Recommended shooting distance: 0.3m)
• Iris: Manual lock
• Mount: C-Mount
• Filter Thread Diameter: M35.5 P=0.5mm
• Compatible Wavelengths: Visible light range
• Distortion: -1.47% (*)
• Weight: 86g
• Operating Temperature Range: -20°C to +60°C

Applications:

• Intelligent Transport Systems (ITS): Essential for systems requiring high sensitivity and resolution, ideal for tasks like traffic monitoring and management.
• License Plate Recognition: Enhances security and automated vehicle identification, crucial for law enforcement and tolling systems.
• Face Recognition: Optimized for facial detection applications, improving access control and surveillance systems.
• Quality Control: Utilized in manufacturing processes for precision inspection and assurance of product quality.
• Robotics and Automation: Supports machine vision systems in automated settings, aiding in tasks like sorting, packaging, and assembly.
