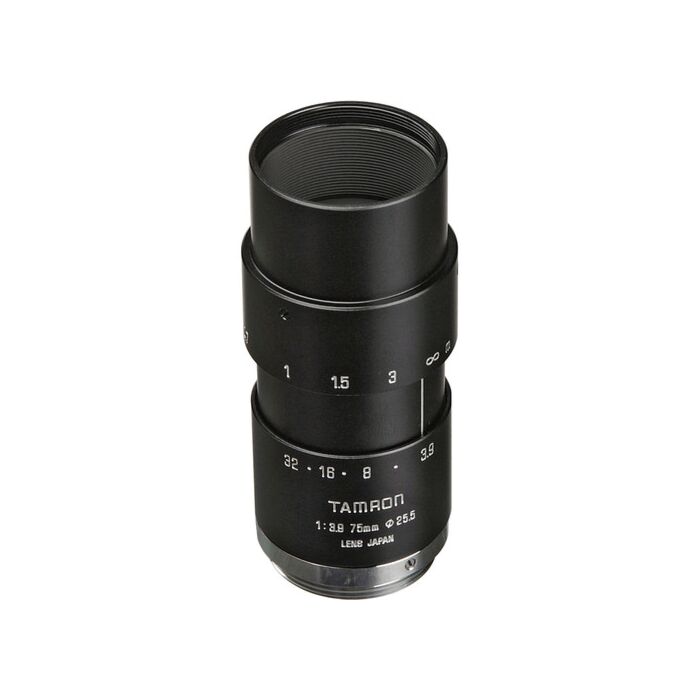

Tamron 23FM75L 2/3" High Resolution Mono-Focal Lens For Machine Vision

Explore the Tamron 23FM75L: High-Resolution Mono-Focal Lens for Machine Vision Applications

The Tamron 23FM75L 2/3" High Resolution Mono-Focal Lens stands out in the Industrial & Machine Vision Lenses industry for its exceptional performance and robust design. With a focal length of 75mm and an aperture range of F3.9 to F32, this lens is engineered to deliver high-quality imaging even in challenging environments. Its compact design, with a maximum diameter of just ø1.1 in. (ø29mm) and a lightweight structure of 68g, makes it a versatile choice for various machine vision applications, particularly in factory automation.

The manual focus and iris features, coupled with a locking mechanism, ensure consistent performance, especially in settings prone to vibrations. With an effective field of view of 6.9° x 5.2° for 2/3" sensors, this lens excels in precision tasks where accuracy is paramount. Its minimum object distance of 19.7 inches (0.5m) allows users to capture detailed images without requiring excessive space.

Ideal for industries such as manufacturing, quality control, and robotic vision systems, the Tamron 23FM75L is designed to meet the demands of modern industrial applications, providing reliability and clarity essential for success. Whether you’re monitoring production lines or conducting inspections, this lens delivers the performance needed to enhance operational efficiency.

Features:

• Focal Length: 75mm for precision imaging.
• Aperture Range: F3.9 to F32 for versatile light control.
• Imager Size: 2/3" compatibility for enhanced resolution.
• Field of View Angle: 6.9° x 5.2° for 2/3" sensors, enabling detailed imaging.
• Mount Type: C-Mount, compatible with various industrial cameras.
• Focus Type: Manual with a locking mechanism to maintain settings in vibration-prone environments.
• Minimum Object Distance: 19.7 in. (0.5m), ideal for close-up applications.
• Effective Diameter: Front Ø18.4mm / Rear Ø10.7mm for optimized light transmission.
• Weight: 68g, ensuring a lightweight and compact design.
• Filter Size: M25.5 P=0.5 for added versatility in imaging conditions.

Applications:

• Factory Automation: Enhances precision in automated processes by providing reliable imaging.
• Quality Control: Ideal for inspection systems, ensuring high-quality standards in manufacturing.
• Robotic Vision Systems: Enables robots to accurately identify and manipulate objects in real time.
• Surveillance Systems: Perfect for monitoring and security applications in industrial settings.
• Medical Imaging: Can be used in diagnostic equipment where high-resolution imaging is critical.
