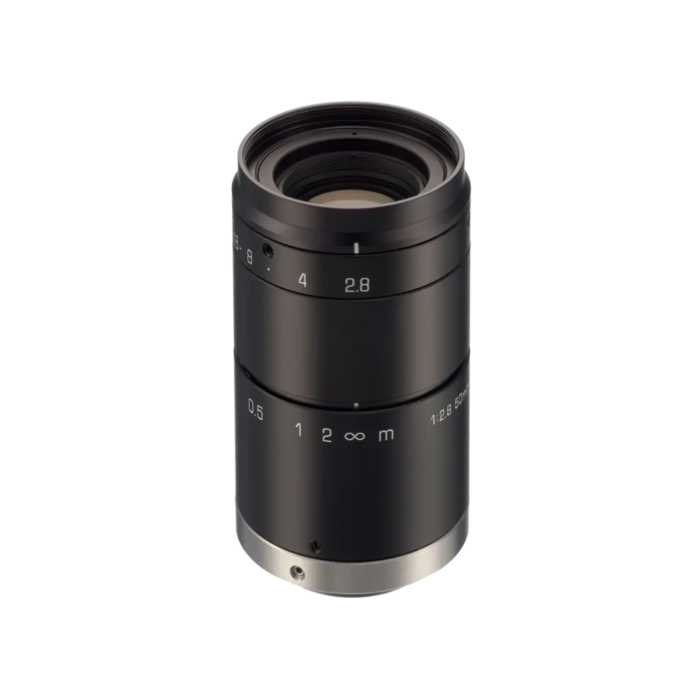

Tamron 23FM50SP 2/3" High Resolution Mono-Focal Lens For 1.3 Mega Pixel Cameras

Tamron 23FM50SP 50mm Mono-Focal Lens for 2/3" C-Mount Industrial and Machine Vision Cameras

The Tamron 23FM50SP is a high-resolution mono-focal lens engineered for precision imaging, specifically designed for industrial and machine vision applications. With an impressive 50mm focal length and an aperture range of F/2.8 to F/32, this lens delivers exceptional clarity, ensuring that every detail is captured even in challenging environments. The lens features a C-mount, compatible with 1.3 Megapixel cameras, making it perfect for inspection systems, automated machinery, and robotic applications where accuracy and reliability are paramount.

This lens boasts a near-zero distortion rate of -0.01%, ensuring edge-to-edge image sharpness. The manual focus and iris control with lock mechanisms enable users to fine-tune settings, providing stability in environments where vibrations or movements might otherwise cause lens drift. Its versatile focus range, from 0.2m to infinity, ensures clear imaging at various distances, while the robust operating temperature range of -10°C to +60°C ensures consistent performance in both extreme and industrial settings.

Tamron’s reputation for creating high-performance optics makes the 23FM50SP an ideal solution for industries requiring reliable, high-quality imaging, including quality control, automated inspection, and robotics, where precision and reliability are essential.

Features:

• Focal Length: 50mm
• Aperture Range: F/2.8 to F/32
• Mount Type: C-mount
• Imager Size: 2/3"
• Low Distortion: -0.01% ≦ D ≦ 0%
• Manual Focus: With lock mechanism
• Manual Iris: With lock mechanism
• Filter Thread: M30.5 P=0.5mm
• Operating Temperature: -10℃ to +60℃
• Focus Range: 0.2m to infinity
• Compatible Wavelengths: Visible light range
• Weight: 117g ± 5g

Applications:

• Industrial Imaging: Suitable for machine vision systems in factories and automated production lines, where high accuracy and low distortion are critical.
• Robotics: Perfect for use in robotic systems requiring precise imaging for navigation or quality control.
• Automated Inspection Systems: Ideal for inspecting components or products in quality control environments, delivering sharp, high-resolution images.
• Security Systems: Applicable in surveillance and security setups requiring accurate identification and tracking.
