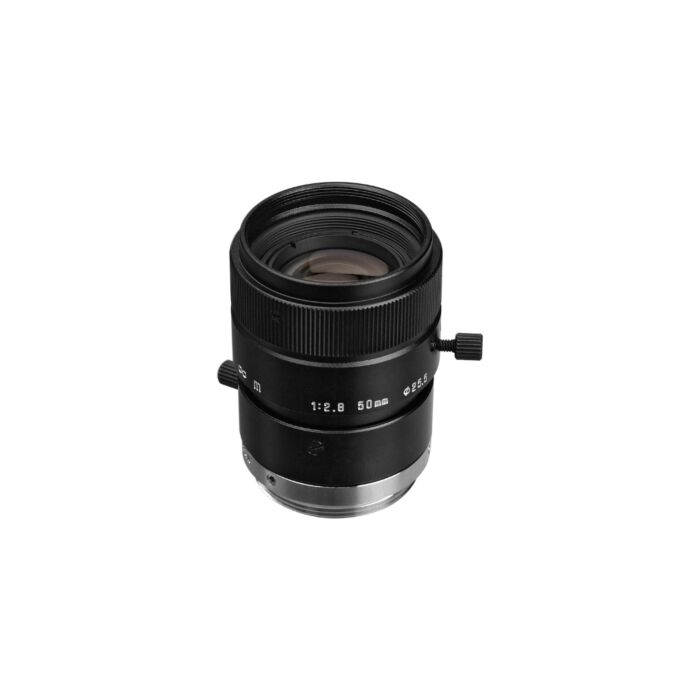

Tamron 23FM50L 2/3" High Resolution Mono-Focal Lens For 1.3 Mega Pixel Cameras Fixed Focal Lens
Tamron 23FM50L 2/3" 50mm F/2.8 Mono-Focal Lens for High-Resolution Industrial Imaging
Aegis Electronic Group Inc. proudly offers the Tamron 23FM50L 2/3" 50mm High-Resolution Mono-Focal Lens, designed specifically for 1.3 Mega Pixel cameras. Tamron, a globally recognized brand in optical innovation, is known for producing precision-engineered lenses tailored to meet the rigorous demands of industrial and machine vision applications. The 23FM50L is engineered for exceptional image clarity and reliability, even in environments with intense vibrations. Its compact size and lightweight construction make it a perfect fit for space-constrained setups while maintaining durability.
The Tamron 23FM50L features a 50mm focal length and manual focus, with lockable focus and iris rings for stability in high-vibration environments like factory floors. The lens' versatile aperture range from F2.8 to F22 ensures precise control over depth of field, making it ideal for capturing sharp images even at a minimum object distance of just 17.3 inches. The lens performs exceptionally well in applications like factory automation, robotics, quality inspection systems, and other machine vision setups. Its compatibility with C-mount systems makes it a versatile choice across a range of industrial environments, providing reliability and clarity for demanding imaging tasks.
The Tamron 23FM50L truly exemplifies quality and precision in industrial imaging solutions.
Features:
- 50mm focal length
- C-mount for 2/3" imager
- Manual focus with lockable focus and iris rings
- Vibration-resistant for stability in harsh environments
- Compact design with a maximum diameter of 1.2 inches (30.5mm)
- Wide aperture range from F2.8 to F22 for versatile depth of field
- Minimum object distance of 17.3 inches (0.44m)
- Lightweight at 52g for easy installation in tight spaces
Applications:
- Factory automation systems
- Machine vision cameras
- Quality control and inspection systems
- Robotics and assembly line imaging
- Precision measurement and monitoring systems
- Surveillance in industrial settings
- Medical imaging devices requiring high resolution
| Imager Size | 2/3" |
| Mount Type | C |
| Focal Length | 50mm |
| Aperture Range | F2.8 - F22 |
| Field of View Angle (1/3") | 5.5° x 4.1° |
| Field of View Angle (1/2") | 7.3° x 5.5° |
| Field of View Angle (2/3") | 10.0° x 7.5° |
| Effective Diameter (Front/Rear Lens) | Ø17.5mm / Ø10.8mm |
| Operation - Focus | Manual with Lock |
| Operation - Iris | Manual with Lock |
| Minimum Object Distance | 17.3 in. (0.44m) |
| Back Focus (in air) | 22.10mm |
| Filter Size | M25.5 P=0.5 |
| Maximum Diameter | ø1.2 in. (ø30.5mm) |
| Overall Length | 1.5 in. (38.5mm) |
| Weight | 52g |
