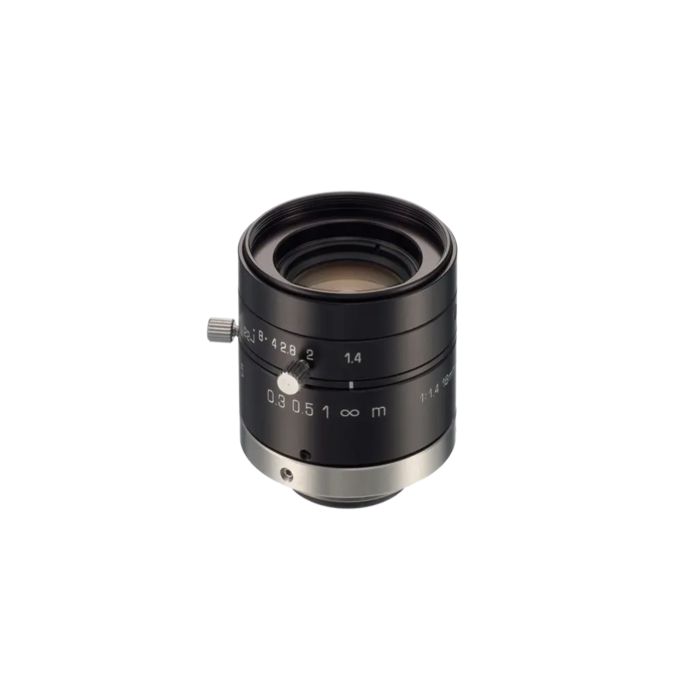

Tamron 23FM16SP 2/3" High Resolution Mono-Focal Lens For 1.3 Mega Pixel Cameras

Tamron 23FM16SP: High-Performance Mono-Focal Lens for Industrial and Machine Vision Applications

The Tamron 23FM16SP 2/3" High Resolution Mono-Focal Lens is engineered for precision and clarity in industrial and machine vision applications. Compatible with 1.3 Mega Pixel cameras, this lens is a vital component for industries that demand high-performance imaging solutions, such as manufacturing, quality control, and automation. With a focal length of 16mm, the lens provides a wide angle of view of 30.9° x 23.4° for 2/3" sensors, making it ideal for capturing detailed images in various environments.

The aperture range of F/1.4 to F/22 allows for flexible lighting conditions, enabling users to maintain image quality in both well-lit and low-light scenarios. With a focus range from 0.15m to infinity, it supports close-up inspections as well as broader views, while the manual focus and iris locks ensure precise adjustments during operation. The lens boasts minimal distortion, rated at -0.1% ≤ D ≤ 0%, which is critical for accurate imaging and analysis in industrial settings.

Operating efficiently in temperatures ranging from -10℃ to +60℃, the Tamron 23FM16SP is durable and reliable, designed to meet the demands of rigorous industrial use. Its robust construction and superior optical performance make it an excellent choice for customers seeking to enhance their machine vision systems, ensuring quality, accuracy, and efficiency in every application.

Features:

• Focal Length: 16mm
• Aperture Range: F/1.4 to F/22
• Focus Range: 0.15m to ∞
• Angle of View (2/3” Sensor): 30.9° x 23.4°
• Angle of View (1/2” Sensor): 22.7° x 17.1°
• Angle of View (1/3” Sensor): 17.1° x 12.9°
• Mount Type: C-Mount
• Distortion: -0.1% ≤ D ≤ 0%
• Manual Iris and Focus Lock: Ensures precision
• Filter Thread Diameter: M30.5 P=0.5mm
• Compatible Wavelengths: Visible light range
• Operating Temperature Range: -10℃ to +60℃
• Weight: 80g ± 5g

Applications:

• Quality Control: Ensures accurate inspection of products through high-resolution imaging.
• Automated Manufacturing: Enhances the capability of machine vision systems for monitoring and control.
• Medical Imaging: Provides clear images for diagnostics and analysis.
• Robotics Vision Systems: Assists robots in identifying objects and navigating environments effectively.
• Security and Surveillance: Improves image clarity for surveillance cameras used in security systems.
