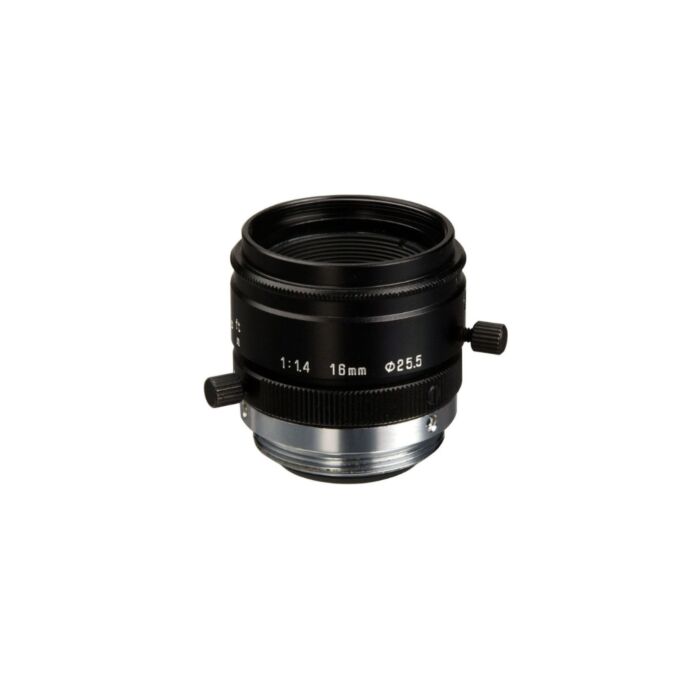

Tamron 23FM16L 2/3" High Resolution Mono-Focal Lens For Machine Vision

Tamron 23FM16L 2/3" High Resolution Mono-Focal Lens: Precision Imaging for Industrial & Machine Vision Applications

Aegis Electronic Group Inc. proudly offers the Tamron 23FM16L 2/3" High Resolution Mono-Focal Lens, specifically engineered for industrial and machine vision applications. With a focal length of 16mm and an aperture range of F1.4 to F16, this lens delivers exceptional image quality and clarity, even in challenging environments. The robust construction ensures durability, making it perfect for factory automation where vibrations and mechanical movements are common. The lens incorporates a manual focus and iris with a locking mechanism, allowing for precise adjustments that remain stable over time.

Designed with a 2/3" imager size, the Tamron lens offers a wide field of view angle—30.9° horizontally and 23.2° vertically—enabling it to capture detailed images of large areas. It operates at a minimum object distance of just 0.29 meters, ensuring versatility for various applications, from inspection systems to robotic vision. The compact size and lightweight design (48g) make it easy to integrate into existing setups, providing users with a powerful tool for enhancing operational efficiency and accuracy. Choose the Tamron 23FM16L for reliable performance and superior imaging in your industrial processes.

Features:

• Focal Length: 16mm
• Aperture Range: F1.4 - F16, providing flexibility for various lighting conditions.
• Field of View Angle:
  • 1/3" Sensor: 16.9° x 12.7°
  • 1/2" Sensor: 22.5° x 16.9°
  • 2/3" Sensor: 30.9° x 23.2°
• Imager Size: 2/3"
• Mount Type: C-Mount for easy integration with various cameras.
• Focus & Iris Operation: Manual with Lock for stable adjustments.
• Minimum Object Distance: 11.4 inches (0.29m), suitable for close-up imaging.
• Back Focus: 11.85mm in air, ensuring optimal lens positioning.
• Filter Size: M25.5 P=0.5 for compatibility with various filters.
• Compact Size: Maximum diameter of ø1.2 in. (ø30mm) and overall length of 1.0 in. (25mm).
• Weight: 48g, lightweight for easy installation.
• Vibration Resistance: Designed for environments with significant vibrations.

Applications:

• Factory Automation: Perfect for machine vision systems that require precise imaging for quality control and inspection processes.
• Robotic Vision: Enhances the capabilities of robotic systems by providing clear, sharp images for object recognition and navigation.
• Inspection Systems: Ensures high-quality imaging for automated inspection systems in manufacturing.
• Medical Imaging: Suitable for various medical devices where high resolution and clarity are essential.
• Security and Surveillance: Provides detailed imaging for security cameras in industrial settings.
