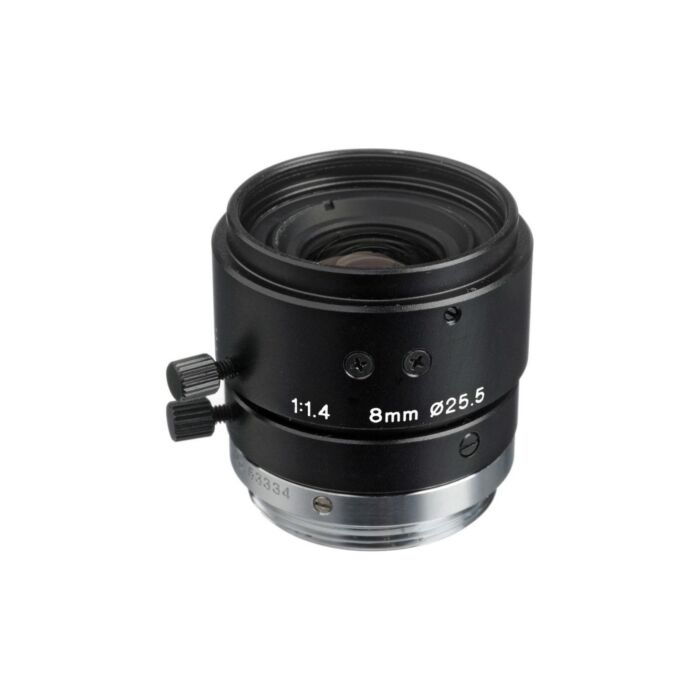

Tamron 23FM08L 2/3" High Resolution Mono-Focal Lens

Tamron 23FM08L 8mm C-Mount Lens for High-Resolution Industrial Machine Vision Applications

The Tamron 23FM08L 8mm High-Resolution C-Mount Lens, available through Aegis Electronic Group Inc., offers precision imaging for industrial and machine vision applications. Designed for 2/3-inch sensors, this mono-focal lens provides exceptional clarity with a wide aperture range of f/1.4 to f/16, making it suitable for various lighting conditions. The manual focus and iris, both equipped with locking mechanisms, ensure precise adjustments and maintain stability in demanding environments.

Tamron is renowned for its robust engineering, and the 23FM08L model is no exception, featuring a solid, vibration-resistant mechanism that thrives in environments like factory automation, robotics, and quality control systems. The 8mm focal length and wide field of view (up to 59.3° x 45.2° for 2/3 sensors) enable it to capture detailed images, even at close distances—ideal for high-speed industrial inspections and automated systems.

Applications that benefit from this lens include assembly line monitoring, precision measurements, and automated visual inspections. Its compact design (weighing just 48g and measuring 1.1 inches in length) makes it easy to integrate into existing systems, offering reliable performance for long-term use in industrial settings.

Features:

• Imager Size: Supports up to 2/3-inch sensors
• Focal Length: 8mm
• Aperture Range: f/1.4 to f/16
• Field of View:
  • 2/3: 59.3° x 45.2°
  • 1/2: 43.6° x 33.1°
  • 1/3: 33.1° x 25.0°
• Manual Focus: With lock for stability
• Manual Iris: Adjustable with lock
• Minimum Object Distance: 10.2 inches (0.26m)
• Vibration Resistance: Built for environments with significant vibrations
• Compact and Lightweight: Weighs only 48g, with a maximum diameter of 1.1 inches (29mm)
• Durability: Designed for long-term use in industrial settings

Applications:

• Factory Automation: Ideal for automated systems that require precision and durability
• Machine Vision: Provides sharp, high-resolution images for visual inspections
• Robotics: Ensures stable performance in high-vibration environments
• Quality Control: Suitable for detailed monitoring and inspections in industrial processes
• Assembly Line Monitoring: Tracks processes and identifies defects efficiently with high clarity
