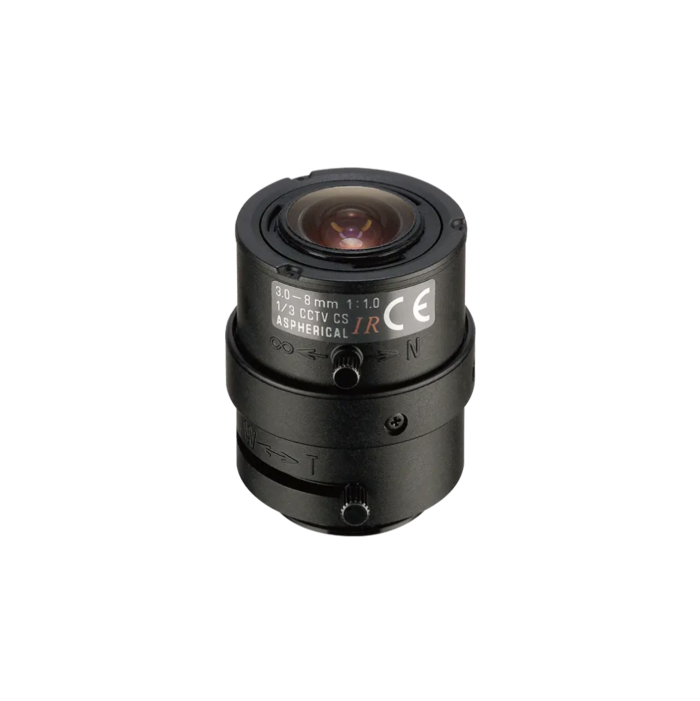

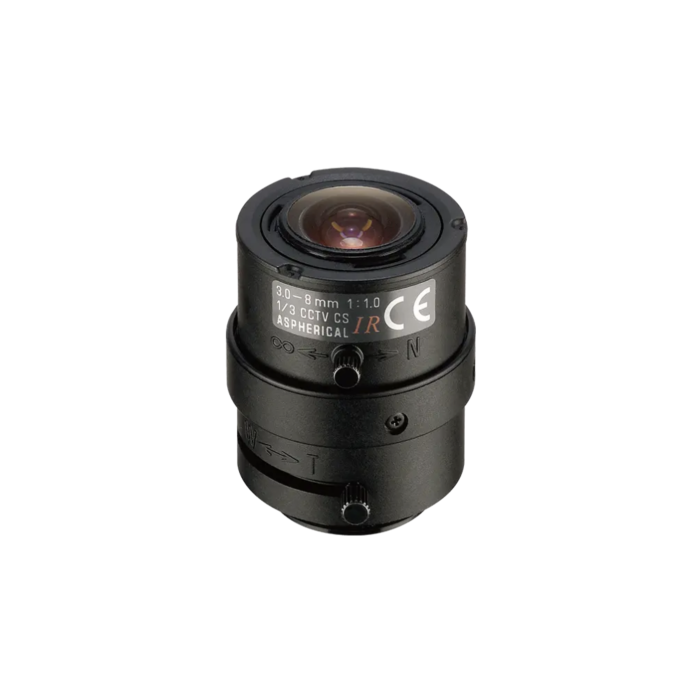

Tamron 13VM308ASIRII 1/3" Aspherical Vari-Focal Lens

Tamron 13VM308ASIRII 1/3" Aspherical Vari-Focal Lens: High-Performance Imaging for Industrial Applications

The Tamron 13VM308ASIRII 1/3" Aspherical Vari-Focal Lens is engineered to meet the demanding needs of the industrial and machine vision sectors. With an impressive focal length range of 3.0 to 8 mm and an aperture range of F/1.0 - Close, this lens ensures exceptional light capture and image clarity. The lens supports a wide-angle view of 92.5° x 68.0°, making it ideal for applications that require extensive coverage in tight spaces. Its focus range extends from 0.2m to infinity, providing flexibility for various imaging tasks.

Built with aspherical elements and low dispersion glass, the Tamron lens achieves up to 650 TVL resolution, ensuring sharp, high-quality images necessary for precise inspection and monitoring in industrial settings. The manual focus, zoom, and iris controls allow users to customize the lens settings to fit their specific applications easily.

The lens is compatible with CS mounts and operates effectively in a temperature range of -20℃ to +60℃, making it suitable for diverse environments. Ideal for applications such as quality control, robotics, and surveillance, the Tamron 13VM308ASIRII is an essential tool for professionals seeking reliable and high-performance imaging solutions in the industrial and machine vision landscape.

Features:

• Focal Length: 3.0 to 8 mm
• Aperture Range: F/1.0 - Close
• Angle of View:
  • 1/3" Wide: 92.5° x 68.0°, Tele: 35.7° x 26.8°
  • 1/4" Wide: 68.0° x 50.4°, Tele: 26.8° x 20.1°
• Focus Range: 0.2m to infinity
• Lens Controls: Manual focus, zoom, and iris with lock
• Mount Type: CS-mount
• Optical Construction: Aspherical elements and low dispersion glass for enhanced image quality
• Resolution: Up to 650 TVL
• Operating Temperature Range: -20℃ to +60℃
• Weight: 38 g ± 4 g
• Back Focus:
  • Wide: 7.69 mm (in air)
  • Tele: 13.72 mm (in air)
• Compatible Wavelengths: Visible light range to near-infrared range

Applications:

• Quality Control: Inspecting products for defects and ensuring standards are met.
• Robotics: Enhancing machine vision for automated systems.
• Surveillance: Providing high-quality imaging for security applications.
• Medical Imaging: Assisting in precise imaging tasks within healthcare environments.
• Logistics: Monitoring processes and tracking goods in warehouses and distribution centers.
