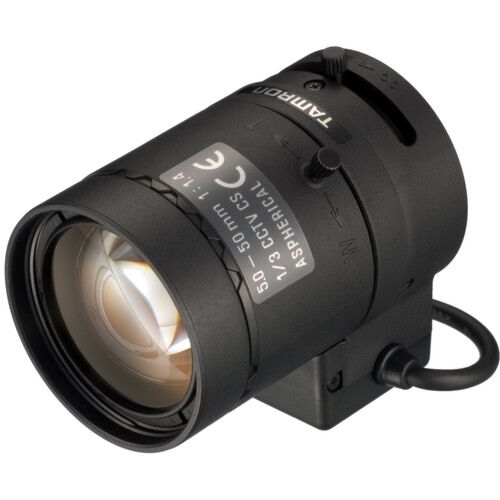

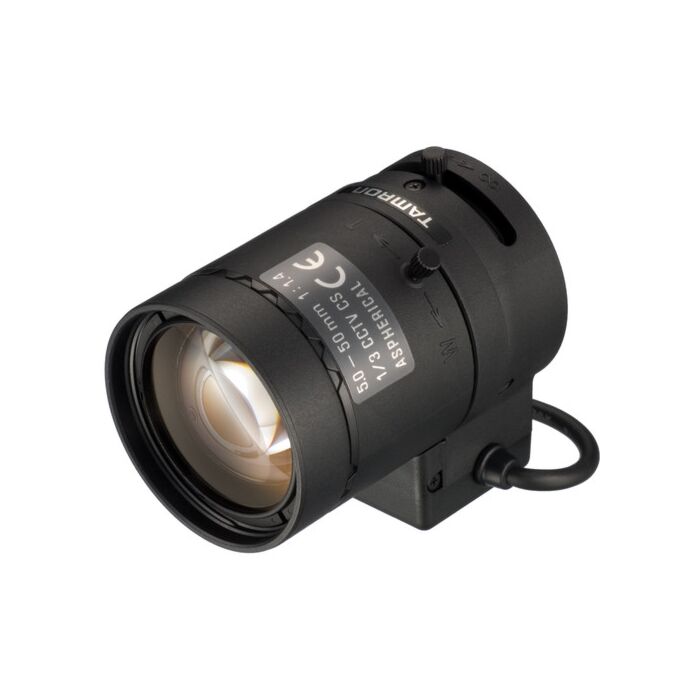

Tamron 13VG550ASII-SQ High Resolution Aspherical Vari-Focal Lens
Tamron 13VG550ASII-SQ High-Resolution Vari-Focal Lens for Industrial & Machine Vision
Aegis Electronic Group Inc. offers the Tamron 13VG550ASII-SQ High-Resolution Vari-Focal Lens, a precision-engineered optic designed for industrial and machine vision applications. Tamron, a trusted name in optics, is known for producing high-quality lenses that offer exceptional imaging performance, particularly in environments that demand versatility and reliability. The 13VG550ASII-SQ features a 1/3" imager size and a CS-mount, making it compatible with a wide range of industrial cameras.
This lens has a focal length range of 5-50mm, allowing users to capture detailed images from a wide field of view to narrow, telephoto perspectives. Its f/1.4 aperture ensures excellent low-light performance, making it ideal for environments where lighting conditions can vary. The manual zoom and focus with locking features provide stability in high-vibration settings. Additionally, the DC auto-iris feature adapts to changing light conditions, ensuring consistent image quality.
Industries that benefit from this lens include manufacturing, automated inspection, robotics, and surveillance. The Tamron 13VG550ASIISQ is highly suited for tasks requiring precise object detection, identification, and measurement, providing a robust solution for machine vision systems. Aegis ensures customers have access to advanced, durable lenses designed for industrial excellence.
Features:
- Focal Length: 5-50mm
- Aperture Range: f/1.4 to close for superior low-light performance
- Imager Size Compatibility: 1/3"
- Mount Type: CS-mount
- Field of View: 53.6° wide to 5.6° telephoto
- Focusing Range: 0.3m to infinity
- Iris Control: DC Auto Iris for consistent light adjustments
- Manual Zoom & Focus: Equipped with lock for stable imaging
- Compact & Lightweight: Weighs 84g, ensuring easy integration
- Operating Temperature: -20°C to +60°C for use in various environments
Applications:
- Machine Vision Systems: Ideal for automated inspection, object detection, and measurement tasks
- Industrial Imaging: Designed for precision and clarity in manufacturing environments
- Surveillance & Security: Suitable for high-quality CCTV in varying light conditions
- Robotics & Automation: Perfect for systems requiring high-resolution visual feedback
- Quality Control & Inspection: Ensures accuracy in industrial processes through detailed imaging
| Imager Size | 1/3 |
| Mount Type | CS |
| Focal Length | 5-50mm |
| Aperture Range | f/1.4 - close (360) |
| Field of View Angle (1/3") | Wide: 53.6° x 40.3°, Tele: 5.6° x 4.2° |
| Field of View Angle (1/4") | Wide: 40.3° x 30.1°, Tele: 4.2° x 3.1° |
| Focusing Range | 0.3m - Infinity |
| Operation Focus | Manual with Lock |
| Operation Zoom | Manual with Lock |
| Operation Iris | DC Auto Iris |
| Back Focus (in air) | Wide: 10.05mm - Tele: 11.81mm |
| Operating Voltage | Open: 4.0V, Close: 0.7V |
| Weight | 84g |
| Operating Temperature | -20°C to +60°C |
