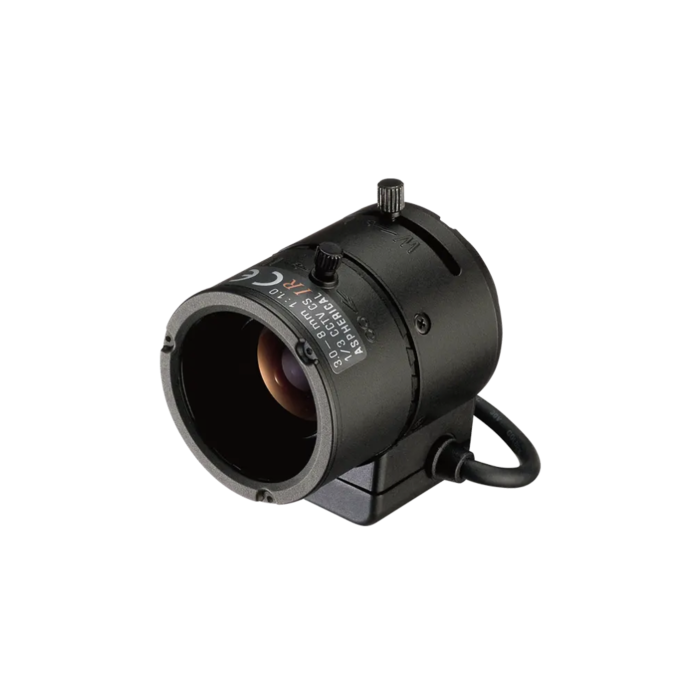

Tamron 13VG308ASIRII 1/3" Aspherical Vari-Focal Lens

Tamron 13VG308ASIRII: Versatile Aspherical Vari-Focal Lens for Industrial Applications

The Tamron 13VG308ASIRII 1/3" Aspherical Vari-Focal Lens represents a pinnacle of optical engineering, specifically designed for the demanding applications in the industrial and machine vision sectors. With a focal length range of 3.0 to 8 mm and an impressive aperture range of F/1.0 to 360, this lens excels in delivering bright and clear images even in low-light environments. The lens offers a wide angle of view of 92.5° x 68.0° in its wide setting, making it ideal for expansive monitoring and inspection tasks.

Engineered with aspherical elements and low dispersion glass, the lens achieves up to 650 TVL resolution, providing unparalleled clarity and detail in captured images. Its manual focus and zoom features, both equipped with locks, allow for precise adjustments to suit specific operational needs. The lens is designed to operate effectively across a temperature range of -20℃ to +60℃, ensuring reliability in various environments.

Compatible with visible light to near-infrared wavelengths, the Tamron 13VG308ASIRII is an exceptional choice for industries such as manufacturing, logistics, and security, enhancing automation and quality control processes through improved image analysis and recognition capabilities. Whether monitoring production lines or inspecting components, this lens will significantly boost operational efficiency.

Features:

• Imager Size: 1/3"
• Mount: CS
• Focal Length: 3.0 to 8 mm
• Aperture Range: F/1.0 to 360
• Angle of View:
  • 1/3" Wide: 92.5° x 68.0°, Tele: 35.7° x 26.8°
  • 1/4" Wide: 68.0° x 50.4°, Tele: 26.8° x 20.1°
• Focus Range: 0.2m to infinity
• Focus Access: Manual lock
• Zoom Access: Manual lock
• Iris: DC Auto Iris
• Back Focus: Wide: 7.69mm, Tele: 13.72mm
• Compatible Wavelengths: Visible light to near infrared
• Operating Voltage: OPEN: 3.0V, CLOSE: 0.7V
• Weight: 45 g ± 4 g
• Operating Temperature Range: -20℃ to +60℃

Applications:

• Quality Control: Ideal for high-precision inspections in manufacturing processes.
• Automated Vision Systems: Enhances the capabilities of robotic vision for assembly and sorting tasks.
• Security and Surveillance: Provides high-resolution imagery for monitoring and identification purposes.
• Logistics: Perfect for barcode reading and inventory management systems, ensuring efficient operations.
